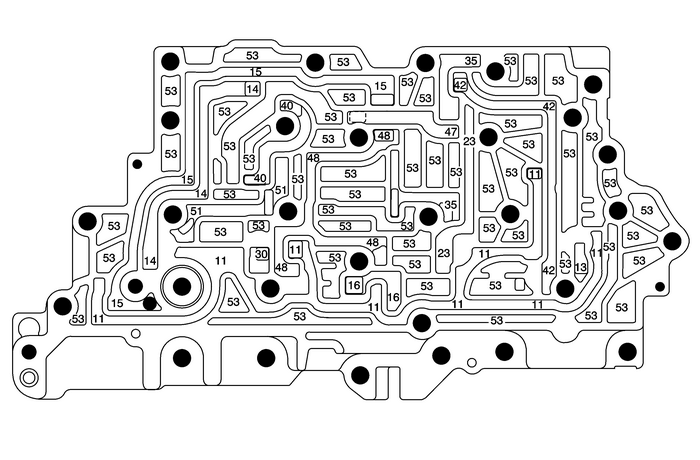

Control Valve Channel Plate– Upper Plate Side

Control Valve Channel Plate - Upper Plate Side Automatic Transmission Unit

(11)Actuator Feed Limit
(13)PCS Line
(14)PCS R1/456 Clutch
(15)Solenoid 1
(16)Solenoid 2
(23)PCS 35 Reverse Clutch
(30)PCS 1234 Clutch
(35)Exhaust
(40)Latch Feed
(42)PCS 26 Clutch
(47)456 Clutch
(48)PCS TCC
(51)Exhaust
(53)Void
Control Valve Channel Plate - Upper Body Spacer Plate Side Automatic Transmission Unit
Control Valve Channel Plate– Upper Body Spacer Plate Side(2)Line(4)Converter Feed(7)Cooler Feed(9)Regulated Apply(10)Compensator Feed(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solen ...

Control Valve Channel Upper Plate Assembly Automatic Transmission Unit
Control Valve Channel Upper Plate Assembly(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solenoid 1(16)Solenoid 2(23)PCS 35 Reverse Clutch(30)PCS 1234 Clutch(42)PCS 26 Clutch(48)PCS TCC(5 ...
