Control Valve Body Assembly Installation Automatic Transmission Unit Control Valve Body

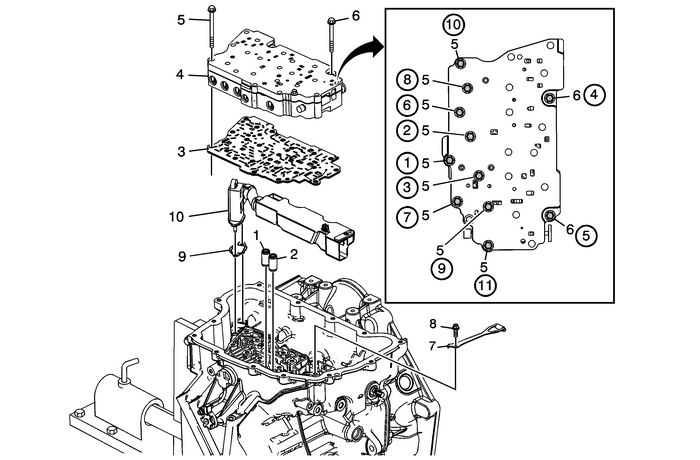

Control Valve Body Assembly Installation

Callout

Component Name

1

Low and Reverse Clutch Fluid Passage Seal

2

1-2-3-4 Clutch Fluid Passage Seal

3

Control Valve Body Spacer Plate Assembly

4

Control Valve Body Assembly

Note:Align the manual valve to the rod on the manual shaft.

5

Control Valve Body Bolt-M6-x-60-(Qty:-9)

Caution:Refer toFastener Caution.

Tighten

11-Y (97-lb-in)

6

Control Valve Body Bolt-M6-x-53-(Qty:-2)

Tighten

11-Y (97-lb-in)

7

Manual Shaft Detent Lever Spring Assembly

8

Manual Shaft Detent Spring Bolt-M6-x-16-(Qty:-1)

Tighten

12-Y (106-lb-in)

9

Fluid Level Control Valve Gasket

10

Fluid Level Control Valve
