Control Valve Body Assembly Disassemble Automatic Transmission Unit Control Valve Body

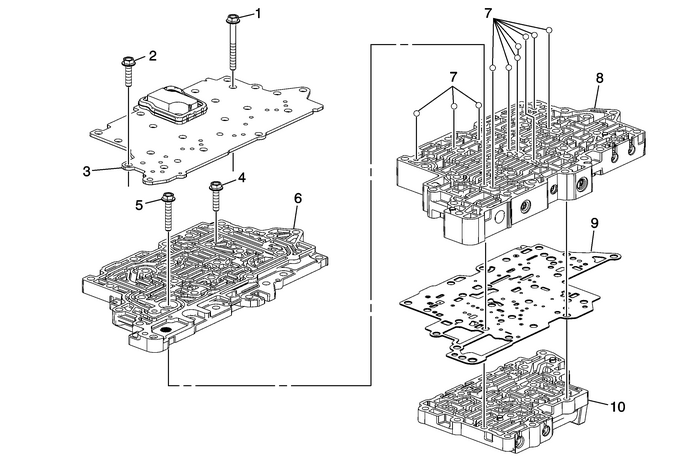

Control Valve Body Assembly Disassemble

Callout

Component Name

1

Control Valve Body Bolt-M6-x-65 (Qty: 5)

2

Control Valve Body Bolt-M6-x-35 (Qty: 3)

3

Control Valve Channel Upper Plate Assembly

Note:

Inspect the upper channel plate bolt pass through holes for damage or brinelling.Any damage near the PCS feed hole will cause incorrect pressure switch operation.Replace as necessary.The TCU pin gasket is not serviceable. If the gasket is damaged, the control valvechannel upper plate assembly must be replaced.

4

Control Valve Body Bolt-M6-x-55 (Qty: 2)

5

Control Valve Body Bolt-M6-x-55 (Qty: 1)

6

Control Valve Channel Plate Assembly

7

Control Valve Body Ball Check Valve (Qty: 10)

8

Control Valve Upper Body Assembly

9

Control Valve Lower Body Spacer Plate Assembly

Note:Discard the spacer plate assembly.

10

Control Valve Lower Body Assembly
