Catalytic Converter Brace Replacement (LEA) Emissions Catalytic Converter

Catalytic Converter Brace Replacement

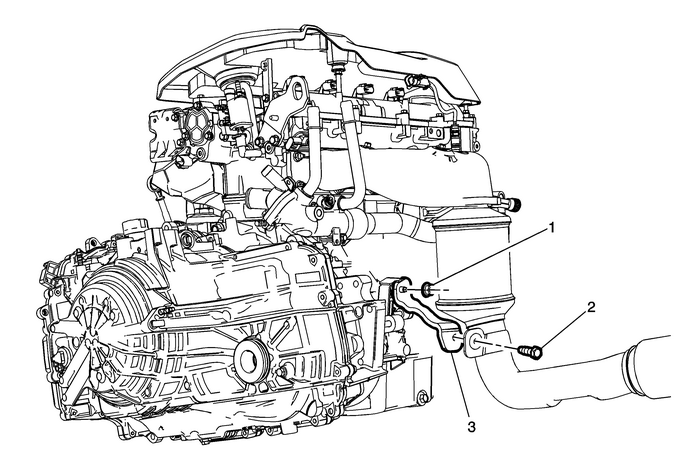

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the catalytic converter. Refer toCatalytic Converter Replacement.

1

Catalytic Converter Bracket Nut

Warning:Refer toExhaust Service Warning.

Caution:Refer toFastener Caution.

Tighten

50-Y (37-lb-ft)

2

Exhaust Manifold Pipe Bracket Bolt

Tighten

50-Y (37-lb-ft)

3

Catalytic Converter Bracket

ProcedureRemove the catalytic converter fastener to brace.Remove the catalytic converter brace-(2).
