Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Bank 2 (Left Side) Intake Valvetrain Camshaft

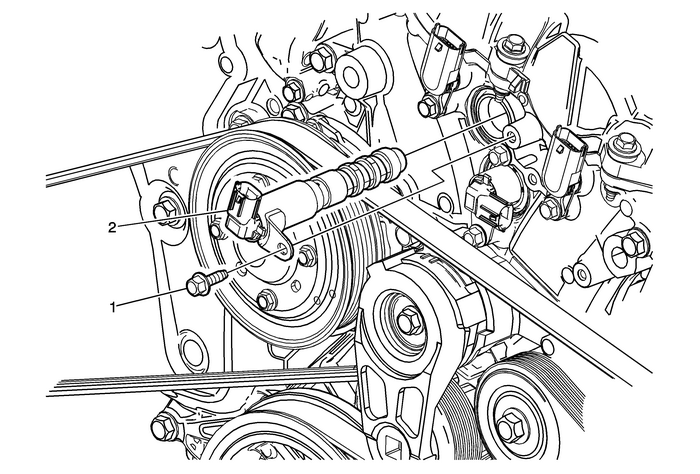

Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Bank 2 (Left Side)Intake

Callout

Component Name

Preliminary Procedure

Remove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side.

1

Camshaft Position Actuator Solenoid Valve Fastener

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

10-Y(89-lb-in)

2

Camshaft Position Actuator Solenoid Valve
