Chevrolet Equinox Service Manual: Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft

Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft

Ensure the proper camshaft position actuator is installed.Observe the body of the camshaft position actuator for the“EX” marking-(1). The marking is foran exhaust camshaft position actuator.Ensure the proper timing mark is used. Observe the outer ringof the camshaft position actuator for the trianglemarking-(2). The marking is for alignment to thehighlighted timing chain link on the right side of theengine.

Caution:Refer toTorque Reaction Against Timing Drive Chain Caution.

Use an open wrench on the hex cast into the camshaft in orderto prevent camshaft rotation when tightening the camshaft positionactuator bolt.

Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft

Apply a liberal amount of lubricant to the back of thecamshaft position actuator-(1) and front of the camshaftbearing cap-(2). Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommendedlubricant.

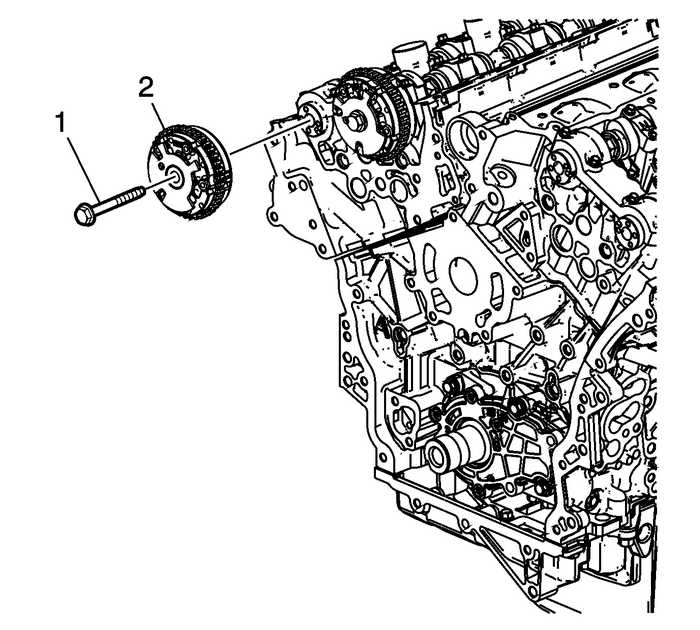

Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft

Install the right exhaust camshaft positionactuator-(2).

Caution:Refer toFastener Caution.

Install the camshaft position actuator bolt-(1)and tighten to58-Y(43-lb-ft).
Secondary Camshaft Drive Chain Shoe Installation - Right Side Valvetrain Camshaft
Ensure that the right secondary camshaft drive chainshoe-(1) is being installed.Position the right secondary camshaft drive chainshoe.Caution:Refer toFastener Caution.Install the secondary camshaft dr ...

Camshaft Position Actuator Installation - Right Side Intake Valvetrain Camshaft
Ensure the proper camshaft position actuator is installed.Observe the body of the camshaft position actuator for the“IN” marking-(3). The marking is foran intake camshaft position actuator.Caution ...
