Secondary Camshaft Drive Chain Shoe Installation - Right Side Valvetrain Camshaft

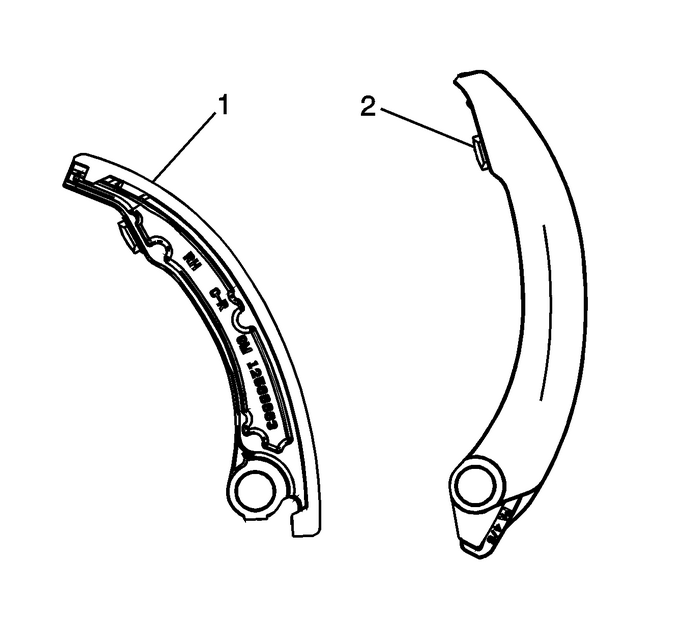

Ensure that the right secondary camshaft drive chainshoe-(1) is being installed.

Secondary Camshaft Drive Chain Shoe Installation - Right Side Valvetrain Camshaft

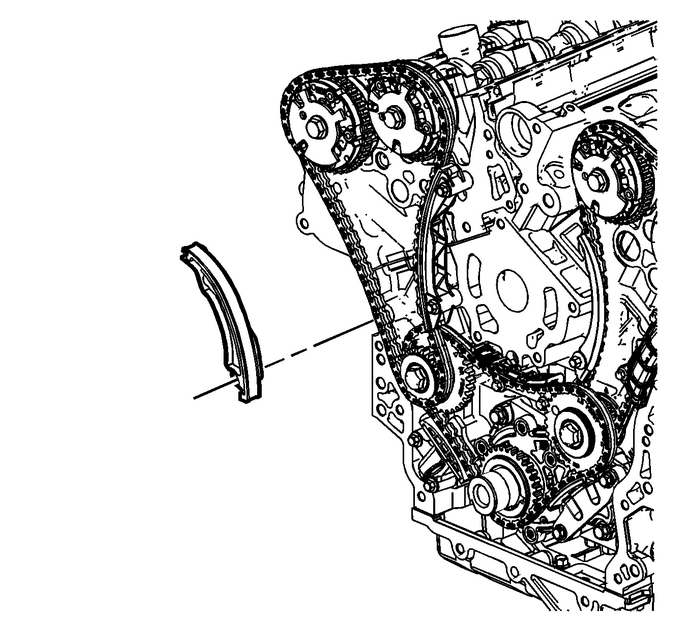

Position the right secondary camshaft drive chainshoe.

Secondary Camshaft Drive Chain Shoe Installation - Right Side Valvetrain Camshaft

Caution:Refer toFastener Caution.

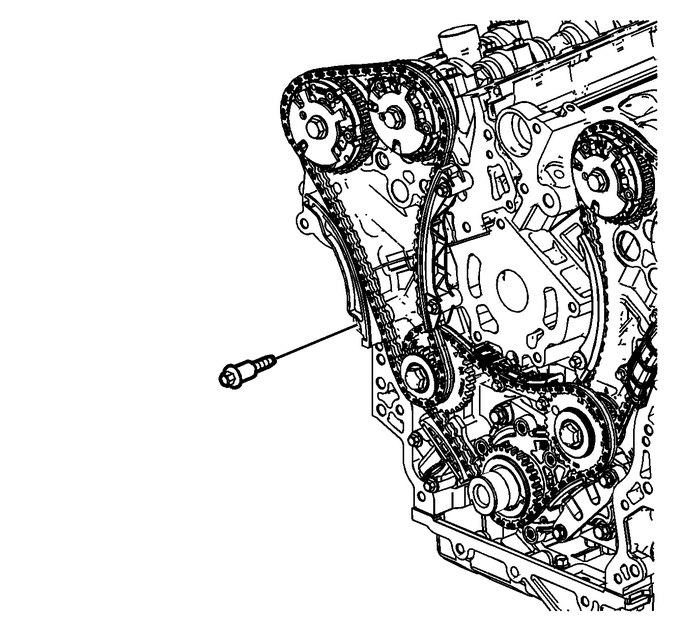

Install the secondary camshaft drive chain shoe bolt andtighten to25-Y(18-lb-ft).
Secondary Timing Chain Guide Installation - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Ensure that the right secondary camshaft drive chainguide-(1) is being installed.Position the right secondary camshaft drive chainguide.Caution:Refer toFastener Caution.Install the secondary camshaft ...

Camshaft Position Actuator Installation - Right Side Exhaust Valvetrain Camshaft
Ensure the proper camshaft position actuator is installed.Observe the body of the camshaft position actuator for the“EX” marking-(1). The marking is foran exhaust camshaft position actuator.Ensure ...
