Control Solenoid Valve and Transmission Control Module Assembly Installation Automatic Transmission Unit

Control Solenoid Valve and Transmission Control Module Assembly Installation

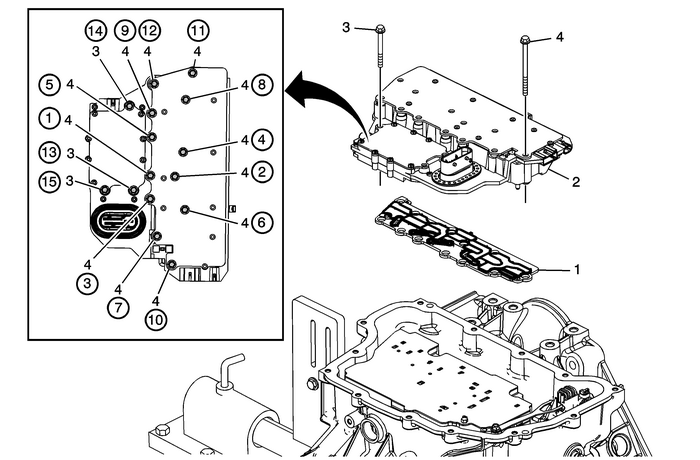

Callout

Component Name

1

Control Solenoid Valve Assembly Filter Plate

Caution:Use care when removing or installing the filter plateassembly. A broken or missing retaining tab may not adequatelysecure the filter plate to the control solenoid valve assembly,resulting in possible damage or contamination.

Note:Install a NEW filter plate to prevent fluid leaks past the fluid seals.

2

Control Solenoid (w/Body and TCM) Valve Assembly

3

Control Valve Body Bolt-M5-x-40.5-(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

7-Y (62-lb-in)

4

Control Valve Body Bolt-M6-x-97-(Qty:-12)

Tighten

10-Y (89-lb-in)

Control Solenoid (w/Body and TCM) Valve Assembly Automatic Transmission Unit
Control Solenoid (w/Body and TCM) Valve Assembly:ii(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solenoid 1(16)Solenoid 2(23)PCS 35 Reverse Clutch(30)PCS 1234 Clutch(42)PCS 26 Clutch(48) ...

Electronic Component Description Automatic Transmission Unit
Control Solenoid Valve Assembly(1)Pressure ControlSolenoid-3(R-1/4-5-6)(2)(GEN-1) Pressure ControlSolenoid-2 (3-5-R)(2)(GEN-2) Pressure ControlSolenoid-5(1-2-3-4)(3)Torque ConverterClutch-(TCC) Pressu ...
