Brake Pedal Pushrod Inspection Hydraulic Brakes Brake Pedal Assembly

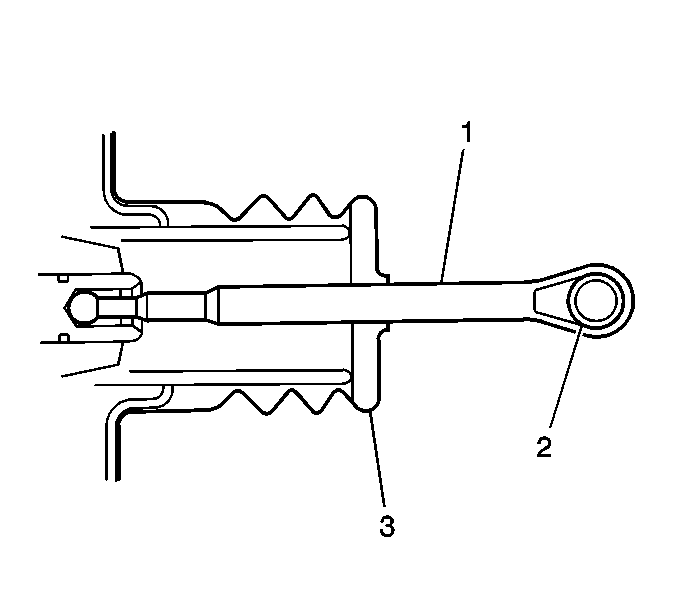

Disconnect the brake pedal pushrod-(1) from thebrake pedal.Inspect the brake pedal pushrod eyeletbushing-(2), if equipped, for cracks and/or excessivewear.Reposition the pedal pushrod boot-(3) toward thefront of the vehicle to expose as much of the pedalpushrod-(1) as possible.Inspect the brake pedal pushrod-(1) forstraightness.If the brake pedal pushrod eyelet bushing-(2)exhibited cracks and/or excessive wear, then the bushing requiresreplacement.If the brake pedal pushrod-(1) is not straight,then the pushrod requires replacement.Return the pedal pushrod boot-(3) to its originalposition on the pedal pushrod-(1).Connect the brake pedal pushrod-(1) to the brakepedal.
