Backup Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Backup Lamp

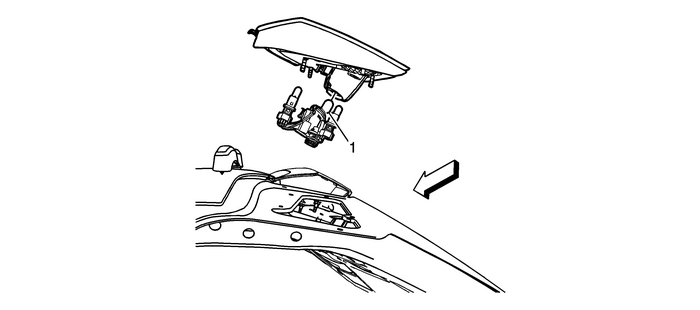

Backup Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the tail lamp applique. Refer toTail Lamp Applique Replacement.

1

Back Up Bulb

Warning:When working with any type of glass or sheet metal withexposed or rough edges, wear approved safety glasses and gloves inorder to reduce the chance of personal injury.

ProcedureRotate the back up bulb socket counterclockwise and removefrom the tail lamp applique.Remove the back up lamp bulb from the bulb socket.
Backup Lamp Bulb Replacement Lighting Exterior Lighting Backup Lamp
Backup Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove either the Left or Right tail lamp assembly. Refer toTail Lamp Replacement.1Back Up Lamp BulbWarning:Refer toHalogen Bulb W ...

Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination
Courtesy Lamp Bulb ReplacementCalloutComponent Name1Courtesy Lamp LensProcedureUsing a nylon flat bladed tool release the lens to gainaccess to the bulb.2Courtesy Lamp Bulb ...
