Chevrolet Equinox Service Manual: Backup Lamp Bulb Replacement Lighting Exterior Lighting Backup Lamp

Chevrolet Equinox Service Manual / Body / Body Electrical / Backup Lamp Bulb Replacement Lighting Exterior Lighting Backup Lamp

Backup Lamp Bulb Replacement Lighting Exterior Lighting Backup Lamp

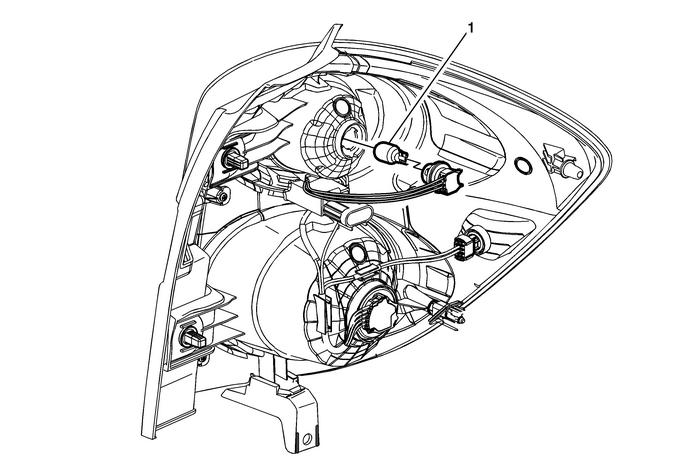

Backup Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove either the Left or Right tail lamp assembly. Refer toTail Lamp Replacement.

1

Back Up Lamp Bulb

Warning:Refer toHalogen Bulb Warning.

ProcedureDisengage the bulb socket from the lamp assembly by turning the socket counterclockwisea quarter turn.Remove the bulb from the socket.
Headlamp Aiming Lighting Exterior Lighting Head Lamp
Aiming Headlamps (Visual Aim)Note:Some state and local laws specify requirements for headlampaim. All of these laws must be complied with when performing anyheadlamp aiming operations.Headlamp aim sho ...

Backup Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Backup Lamp
Backup Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove the tail lamp applique. Refer toTail Lamp Applique Replacement.1Back Up BulbWarning:When working with any type of glass or ...
