Chevrolet Equinox Service Manual: Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Chevrolet Equinox Service Manual / HVAC / Cooling / Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Removal Procedure

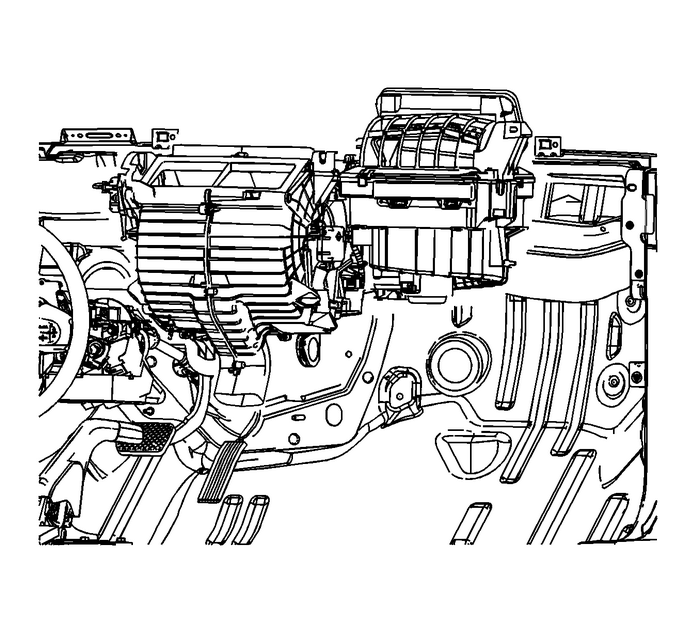

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Remove the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

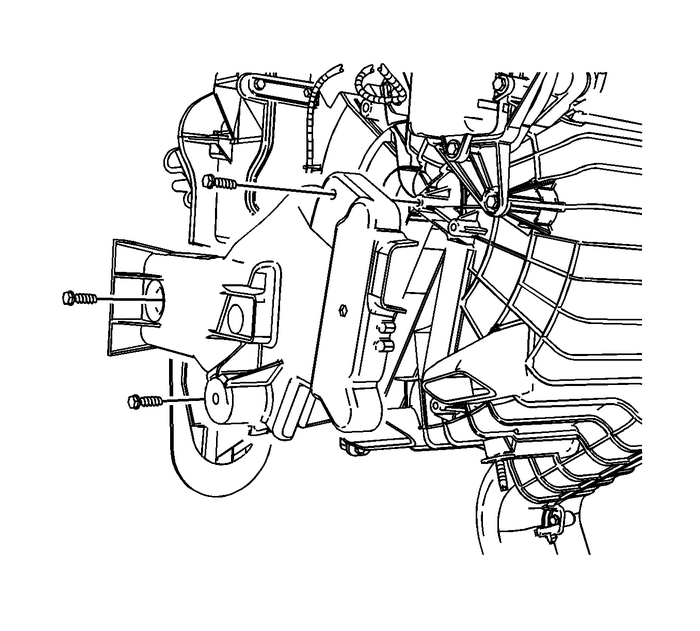

Remove the heater core cover screws from the evaporator caseassembly.Remove the heater core cover from the evaporator caseassembly.

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

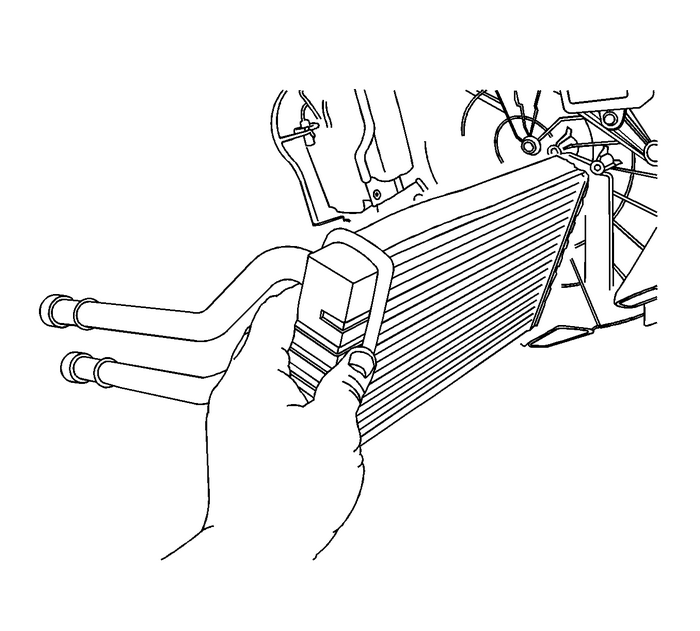

Remove the heater core from the HVAC module.

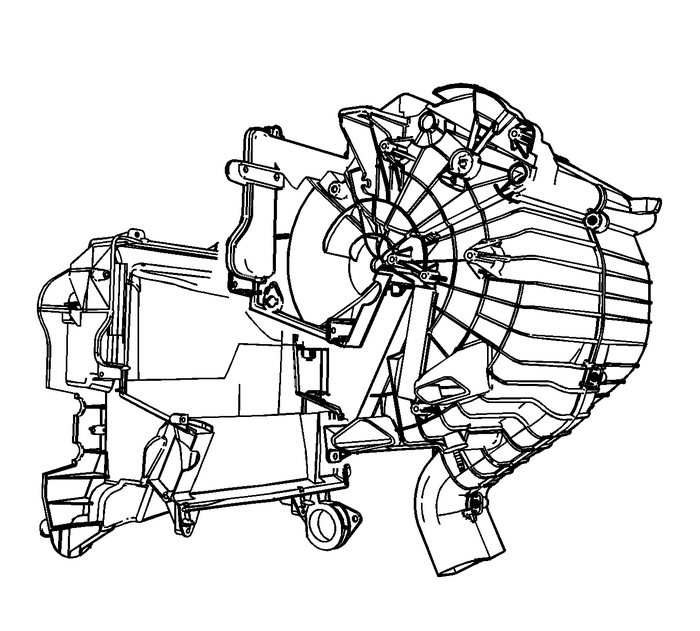

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Remove the evaporator case assembly screws from the blowercase assembly.Remove the evaporator case assembly from the blower caseassembly.Installation Procedure

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Install evaporator case assembly to the blower caseassembly.

Caution:Refer toFastener Caution.

Install evaporator case assembly screws to the blower caseassembly.

Tighten

Tighten the screws to 1.5-Y(13-lb-in).

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Install heater core to the HVAC module.

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Install heater core cover.Install heater core cover screws.

Tighten

Tighten the screws to 1.5-Y(13-lb-in).

Air Conditioning (A/C) Evaporator Case Assembly Replacement Evaporator

Install the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.
