Air Cleaner Outlet Resonator Replacement Intake and Forced Induction Air Filter Assembly

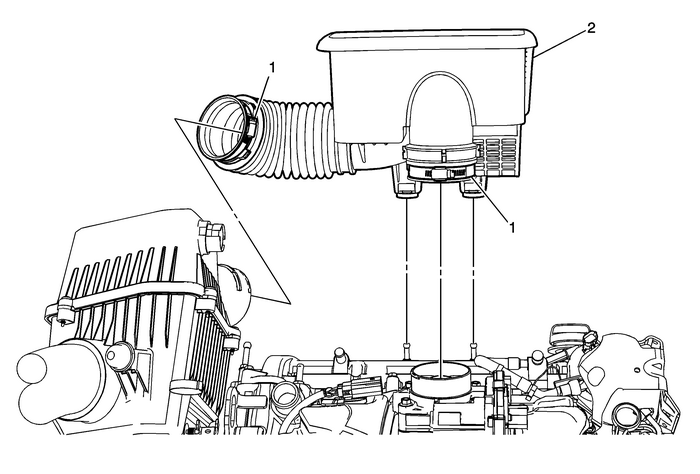

Air Cleaner Outlet Resonator Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the PCV valve from the resonator. Refer toPositive Crankcase Ventilation Hose/Pipe/Tube Replacement.

Resonator Clamps (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

5-Y(44-lb-in)

Air Cleaner Outlet Resonator
