Air Cleaner Outlet Duct Replacement Intake and Forced Induction Air Filter Assembly

Air Cleaner Outlet Duct Replacement

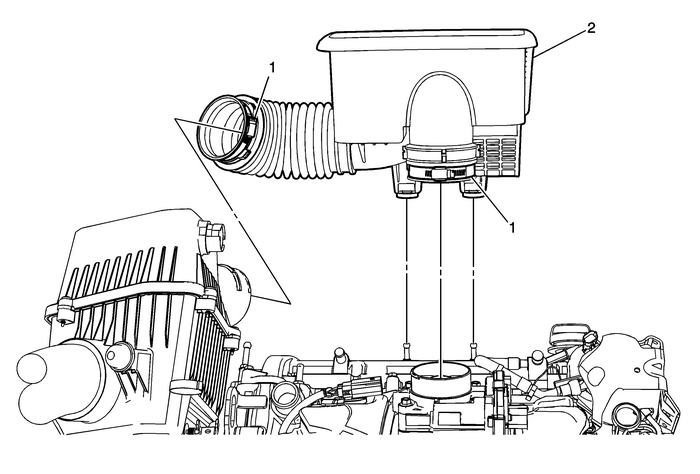

Callout

Component Name

Preliminary Procedure

Disconnect the PCV valve from the resonator. Refer toPositive Crankcase Ventilation Hose/Pipe/Tube Replacement.

1

Resonator Clamps (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

5-Y(44-lb-in)

2

Air Cleaner Outlet Resonator

Air Cleaner Outlet Duct Replacement Intake and Forced Induction Air Filter Assembly
Air Cleaner Outlet Duct ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the front positive crankcase ventilation tube.Refer toPositive Crankcase Ventilation Tube Replacement - Front.1A ...

Air Cleaner Outlet Resonator Replacement Intake and Forced Induction Air Filter Assembly
Air Cleaner Outlet Resonator ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the PCV valve from the resonator. Refer toPositive Crankcase Ventilation Hose/Pipe/Tube Replacement.1Resona ...
