Air Cleaner Assembly Replacement Intake and Forced Induction Air Filter Assembly

//

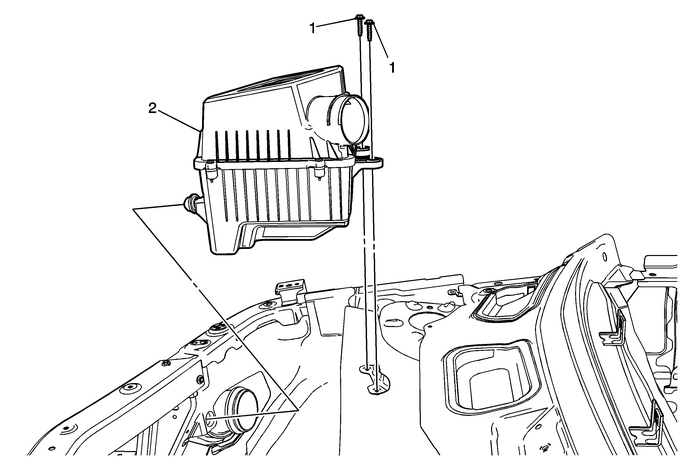

Air Cleaner Assembly Replacement

Callout

Component Name

Preliminary ProceduresDisconnect the air cleaner outlet duct from the air cleaner assembly. Refer toAir Cleaner Outlet Duct Replacement.If required, remove the throttle inlet absolute pressure sensor. Refer toThrottle Inlet Absolute Pressure Sensor Replacement.If required, remove the mass airflow sensor. Refer toMass Airflow Sensor with Intake Air Temperature Sensor Replacement.

1

Air Cleaner Assembly Fastener (Qty:-2)

Caution:Refer toFastener Caution

Tighten

6-Y (53-lb-in)

2

Air Cleaner Assembly
