Chevrolet Equinox Service Manual: Control Valve Body Assembly Removal Automatic Transmission Unit Control Valve Body

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Control Valve Body Assembly Removal Automatic Transmission Unit Control Valve Body

Table 1: Control Valve Body Cover Removal
Table 2: Control Solenoid (With Body and TCM) Valve Assembly Removal
Table 3: Control Valve Body Assembly Removal
Control Valve Body Cover Removal

Control Valve Body Assembly Removal Automatic Transmission Unit Control Valve Body

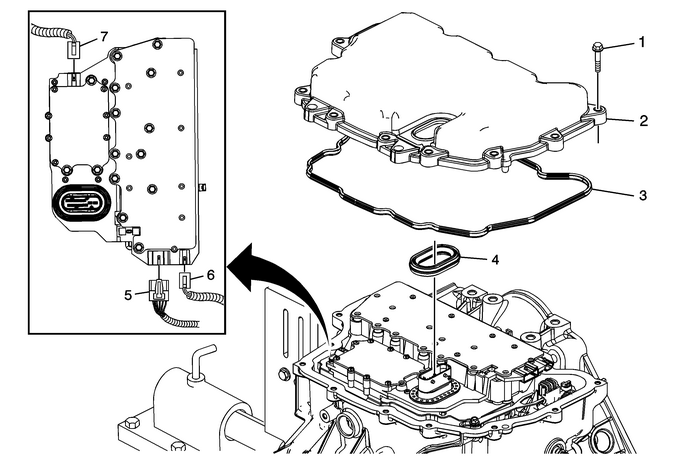

Control Valve Body Cover Removal

Callout

Component Name

1

Control Valve Body Cover Bolts-M6-x-30-(Qty:-13)

2

Control Valve Body Cover

3

Control Valve Body Gasket

Note:Discard the seal. It is not reusable.

4

Control Valve Body Cover Wiring Connector Hole Seal

Caution:Support the control solenoid valve assembly around theconnector when removing the seal. Excessive pulling force candamage the internal electrical connections.

Note:Discard the seal. It is not reusable.

5

Shift Position Switch Connector

6

Output Speed Sensor Connector

7

Input Speed Sensor Connector

Control Solenoid (With Body and TCM) Valve Assembly Removal

Control Valve Body Assembly Removal Automatic Transmission Unit Control Valve Body

Control Solenoid (With Body and TCM) Valve Assembly Removal

Callout

Component Name

1

Control Valve Body M5-x-40.5-(Qty:-3)

2

Control Valve Body Bolt M6-x-30-(Qty:-12)

3

Control Solenoid (with Body and TCM) Valve Assembly

4

Control Solenoid Valve Assembly Filter Plate

Caution:Use care when removing or installing the filter plateassembly. A broken or missing retaining tab may not adequatelysecure the filter plate to the control solenoid valve assembly,resulting in possible damage or contamination.

Note:Discard the filter plate. It is not reusable.

Control Valve Body Assembly Removal

Control Valve Body Assembly Removal Automatic Transmission Unit Control Valve Body

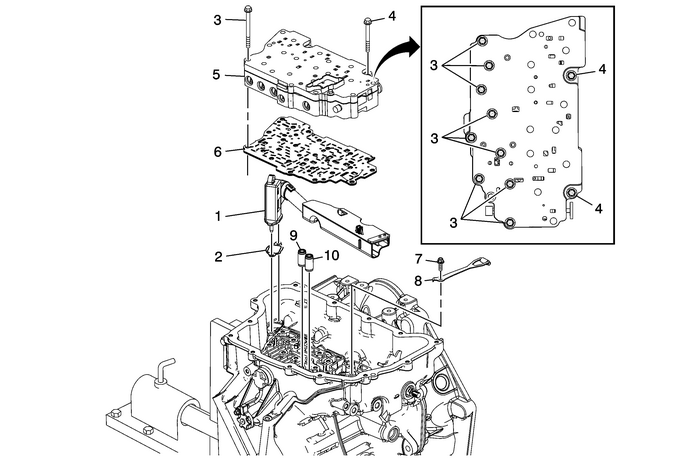

Control Valve Body Assembly Removal

Callout

Component Name

1

Fluid Level Control Valve

2

Fluid Level Control Valve Gasket

3

Control Valve Body Bolt M6-x-60-(Qty:-9)

4

Control Valve Body Bolt M6-x-53-(Qty:-2)

5

Control Valve Body Assembly

6

Control Valve Body Spacer Plate Assembly

7

Manual Shaft Detent Spring Bolt M6-x-16-(Qty:-1)

8

Manual Shaft Detent Lever Spring Assembly

9

1-2-3-4 Clutch Fluid Passage Seal

Note:Discard the seal. It is not reusable.

10

Low/Reverse Clutch Fluid Passage Seal

Note:Discard the seal. It is not reusable.
