Air Cleaner Assembly Replacement Intake and Forced Induction Air Filter Assembly

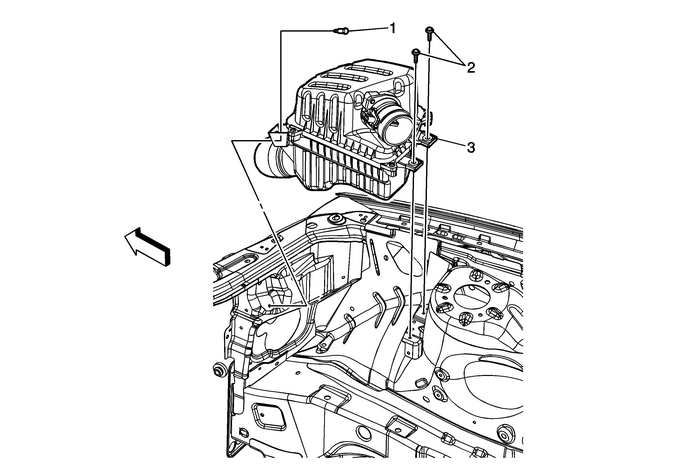

Air Cleaner Assembly Replacement

Callout

Component Name

Preliminary Procedures

Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.

1

Air Cleaner Assembly Bolt

Caution:Refer toFastener Caution.

Tighten

8-Y-(71-lb-in)

2

Air Cleaner Assembly Bolt (Qty:-2)

Tighten

6-Y-(53-lb-in)

3

Air Cleaner Assembly

ProcedureDisconnect any electrical connectors as needed.Transfer any parts as needed.
