Chevrolet Equinox Service Manual: Adjust Link Replacement

Chevrolet Equinox Service Manual / Chassis / Suspension / Adjust Link Replacement

Adjust Link Replacement

Adjust Link Replacement

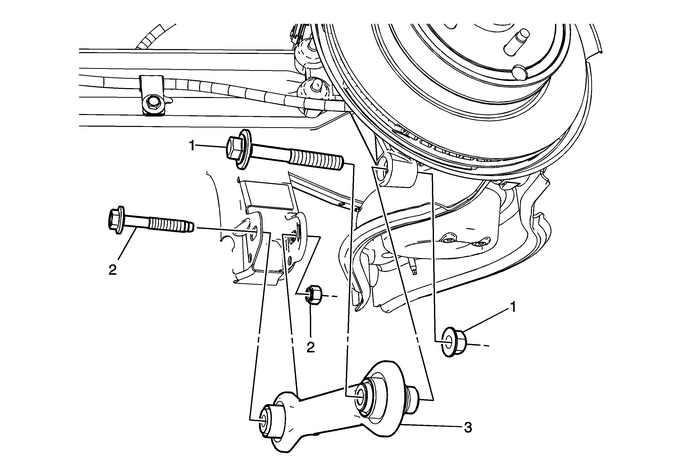

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the rear wheel and tire assembly. Refer toTire and Wheel Removal and Installation.

1

Adjustment Link to Knuckle Bolt and Nut

Caution:Refer toFastener Caution.

Tighten

160-Y(118-lb-ft).

2

Adjustment Link to Support Bolt and Nut

Tighten

160-Y(118-lb-ft).

3

Adjustment Link

Procedure

Check rear alignment. Refer toWheel Alignment Measurement.
