Compressor Clutch Plate and Hub Assembly Removal Wheel Hub

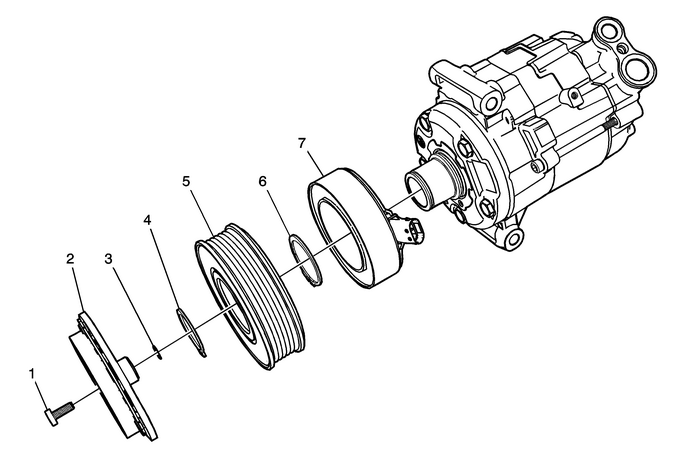

Compressor Clutch Plate and Hub Assembly Removal

Callout

Component Name

Preliminary ProceduresRemove the drive belt. Refer toDrive Belt Replacement.Remove the air conditioning compressor if necessary. Refer toAir Conditioning Compressor Replacement.Disconnect the electrical connector from the air conditioningcompressor.

1

Air Conditioning Compressor Pulley Bolt

Caution:Refer toFastener Caution.

Tighten

12-Y(106-lb-in)

2

Air Conditioning Clutch Drive Plate

Procedure

Measure and adjust the air conditioning compressor clutchdrive plate per specification. Refer toAir Conditioning Clutch Drive Plate Adjustment.

3

Air Conditioning Compressor Clutch Drive Plate AdjustmentShim

4

Air Conditioning Compressor Clutch Pulley Snap Ring

Procedure

Ensure the clutch pulley snap ring is installed with the flatside toward the air compressor.

5

Air Conditioning Compressor Clutch Pulley

6

Air Conditioning Compressor Clutch Coil Snap Ring

Procedure

Ensure the clutch coil snap ring is installed with the flatside toward the air compressor.

7

Air Conditioning Compressor Clutch Coil

Adjust Link Replacement
Adjust Link ReplacementCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the rear wheel and tire assembly. Refer toTire and Wheel Removal and ...

Fastener Tightening Specifications - Suspension
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishFront Lower Control Arm Ball Stud NutFirst Pass10-Y89-lb-inFinal PassPlus-165-DegreesFront Lower Control Arm Front Bolt/Nut115-Y8 ...
