Windshield Wiper and Washer Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the steering column shroud. Refer toSteering Column Shroud Replacement.

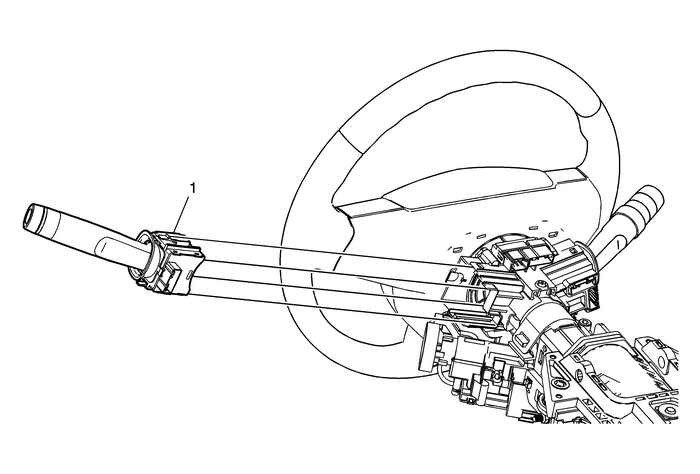

Windshield Wiper and Washer Switch

ProcedureDisconnect any electrical connectors as needed.Release the plastic retaining tabs and remove the windshieldwiper and washer switch from the turn signal switch bracket.
