Windshield Washer Solvent Container Replacement Washer Fluid System

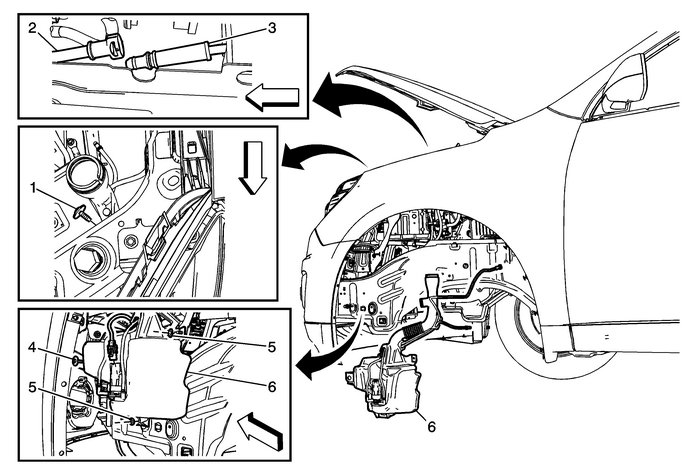

Windshield Washer Solvent Container Replacement

Callout

Component Name

Preliminary ProceduresOpen and support the hood.Remove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Cover Replacement.Disconnect the windshield washer nozzle hose from thewindshield washer pump hose.Remove the windshield washer container filler neck bolt fromthe front compartment front panel.Remove the left front wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.

1

Windshield Washer Solvent Container Filler Neck Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Windshield Washer Pump Hose

3

Windshield Washer Nozzle Hose

4

Windshield Washer Solvent Container Bolt

Tighten

9-Y(80-lb-in)

5

Windshield Washer Solvent Container Nut(Qty:-2)

Tighten

9-Y(80-lb-in)

6

Windshield Washer Solvent Container Assembly

ProcedureDisconnect the rear window washer pump hose.Disconnect the windshield washer pump electricalconnector.Transfer the washer hoses to the new container.Remove and transfer the washer container cap.Empty the windshield washer solvent container contents intoan approved container.Install a new washer pump grommet to the washercontainer.Remove and transfer the windshield washer containerpump.After installation, fill the windshield washer container withnew washer solvent.Inspect the system for leaks.
