Chevrolet Equinox Service Manual: Vehicle Identification Number (VIN)

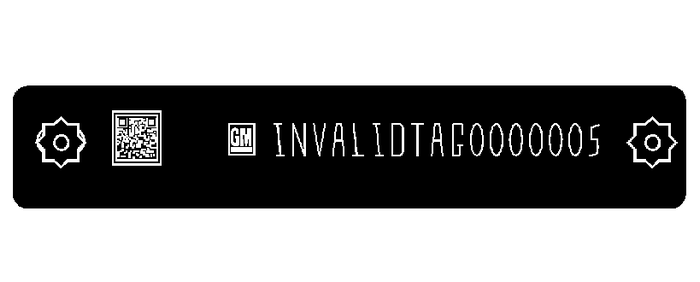

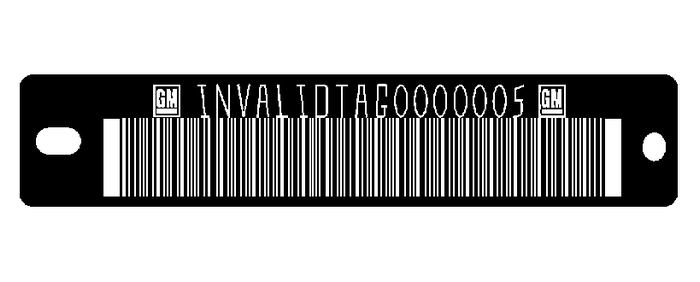

This legal identifier is in the front corner of the instrument panel, on the leftside of the vehicle. It can be seen through the windshield from outside. The VIN alsoappears on the Vehicle Certification and Service Parts labels and certificates oftitle and registration.
Engine IdentificationThe eighth character in the VIN is the engine code. This code identifies the vehicle'sengine, specifications, and replacement parts. See “Engine Specifications” underCapacities and Specificationsfor the vehicle's engine code.
Service Parts Identification Label
This label, on the inside of the glove box, has the followinginformation:Vehicle Identification Number (VIN).Model designation.Paint information.Production options and special equipment.Do not remove ...
Arrows and Symbols
This service manual uses various symbols in order to describedifferent service operations.(1)Front of Vehicle(2)View Detail(2)View Detail(3)Ambient Air Mixed with Another Gasor Indicate Temperature Ch ...
