Transmission Rear Mount Replacement (FWD) Automatic Transmission Unit

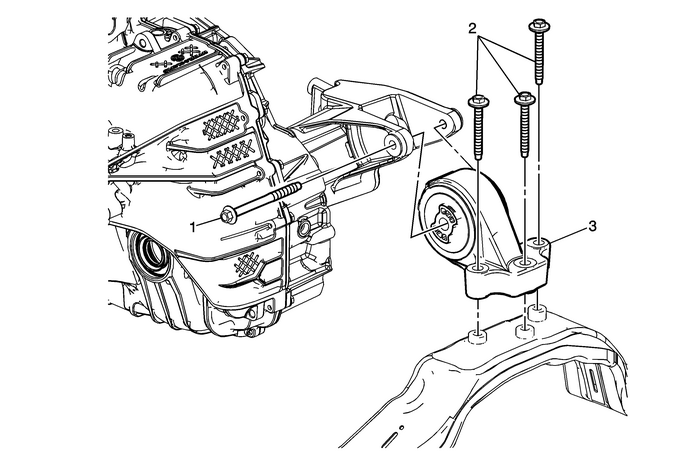

Transmission Rear Mount Replacement

Callout

Component Name

Preliminary ProceduresRemove the right front tire and wheel. Refer toTire and Wheel Removal and Installation.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Support the transmission with a transmission jack.

1

Rear Transmission Mount Through Bolt

Caution:Refer toFastener Caution.

Tighten

110-Y(81-lb-ft)

2

Rear Transmission Mount Bolt (Qty:-3)

Tighten

57-Y(42-lb-ft)

3

Rear Transmission Mount

Transmission Rear Mount Replacement Automatic Transmission Unit
Transmission Rear Mount ReplacementCalloutComponent NameDanger:To avoid any vehicle damage, serious personal injury or deathwhen major components are removed from the vehicle and the vehicleis support ...

Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage Automatic Transmission Unit
Vehicle, Engine and Transmission ID and VIN Location, Derivative and UsagePositionDefinitionCharacterDescription Vehicle Identification Number (VIN) SystemThe VIN plate-(1) is the legal identifier of ...
