Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the right wheel drive shaft. Refer toFront Wheel Drive Shaft Replacement. | |

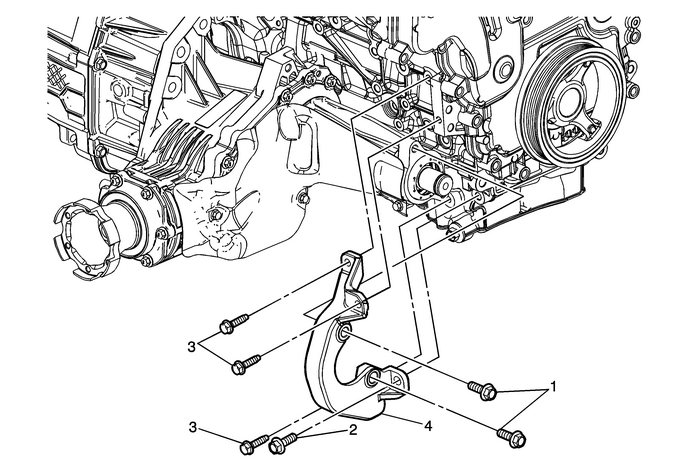

1 | Transfer Case Brace Bolt (Qty:-2) Caution:Refer toFastener Caution. Tip:Tighten the fasteners in the specified sequentialorder. Tighten50-Y(37-lb-ft) |
2 | Transfer Case Brace Bolt Tip:Tighten the fasteners in the specified sequentialorder. Tighten50-Y(37-lb-ft) |
3 | Transfer Case Brace Bolt (Qty:-3) Tip:Tighten the fasteners in the specified sequentialorder. Tighten23-Y(17-lb-ft) |
4 | Transfer Case Brace |
Instrument Panel Center Air Outlet Replacement (Terrain) Dashboard Assembly
Instrument Panel Center Air Outlet ReplacementCalloutComponent NamePreliminary ProcedureRemove the Radio Control Assembly. Refer toRadio Control Assembly Replacement.1Left Instrument Panel Center Air Outlet Fasteners(Qty:-2)Caution:Refer toFastener Caution.Tighten2.5-Y(22-lb-in)2Left Instrument Pane ...
