Throttle Body Assembly Replacement Engine Control Air Metering/Acceleration Throttle

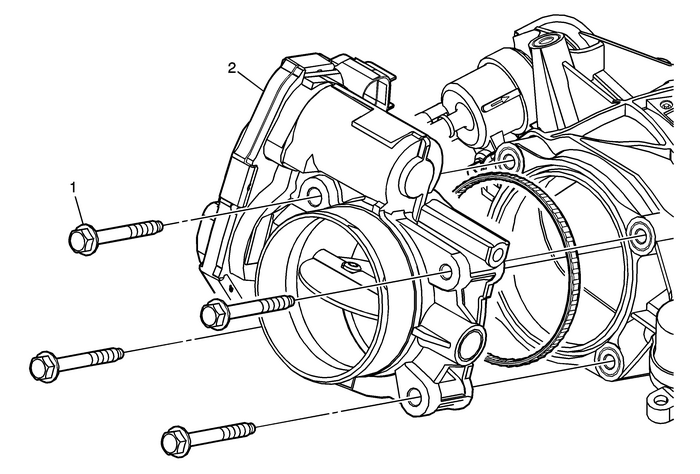

Throttle Body Assembly Replacement

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Bolt (Qty: 4)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Throttle Body

ProcedureDisconnect the throttle body harness connector.Install a NEW throttle body seal.Perform the throttle learn procedure. Refer toQ38 Throttle Body: Throttle/Idle Learn.

Throttle Body Assembly Replacement Engine Control Air Metering/Acceleration Throttle

Throttle Body Assembly ReplacementCalloutComponent NamePreliminary ProcedureRemove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement1Throttle Body Assembly Fastener (Qty:-4)Caut ...

Throttle Inlet Absolute Pressure Sensor Replacement Engine Control Air Metering/Acceleration Throttle

Throttle Inlet Absolute Pressure Sensor ReplacementCalloutComponent Name1Throttle Inlet Absolute Pressure Sensor FastenerCaution:Refer toFastener Caution.Tighten4-Y (35-lb-in)2Throttle Inlet Absolute ...
