Chevrolet Equinox Service Manual: Sunroof Track Timing/Synchronization Moonroof/Sunroof

Chevrolet Equinox Service Manual / Body / "Roof - Fixed, Leisure" / Sunroof Track Timing/Synchronization Moonroof/Sunroof

It is only necessary to lower the headliner. Only do thosesteps in the headliner replacement procedure that will lower theheadliner enough to gain access to the part. Refer toHeadlining Trim Panel Replacement.Place the sunroof window in the vent/open position.Remove the screws from the motor/actuator.Disengage the motor/actuator from the drive cables andmodule.

Note:After the motor/actuator has been remove it will be necessaryto align the module tracks.

Remove the sunroof window. Refer toSunroof Window Replacement.

Sunroof Track Timing/Synchronization Moonroof/Sunroof

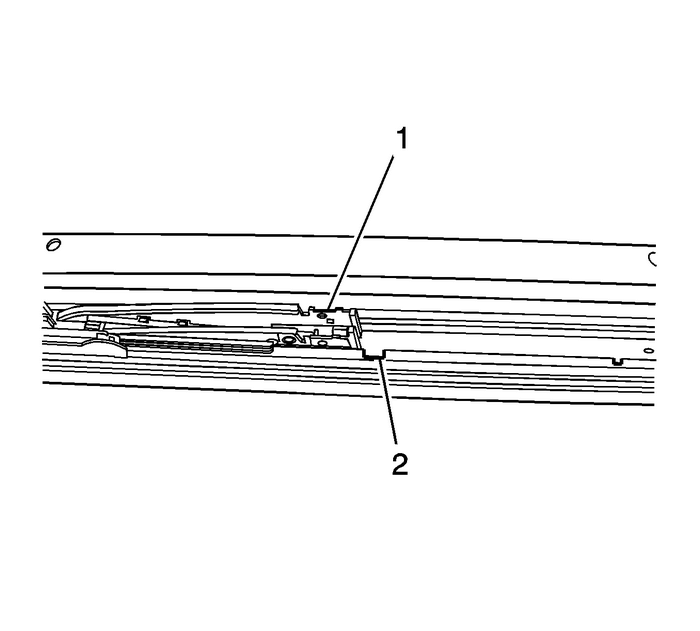

Sliding the drive cable plates-(1) on the left andright forward until the first stop is made-(2), thiswill lock the sliding bracket and release drive cable plate.

Sunroof Track Timing/Synchronization Moonroof/Sunroof

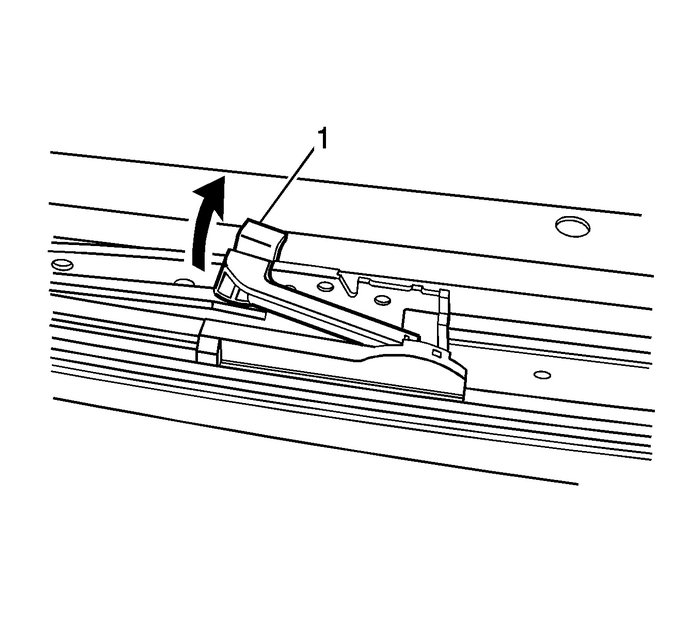

Manually adjust the drive cable plates-(1) on theleft and right sides, by sliding them forward until contact is madeto the guide crimp (timing hard stop).Install the sunroof motor/actuator. Refer toSunroof Motor/Actuator Replacement.Install the sunroof window. Refer toSunroof Window Replacement.Ensure the motor/actuator initialization/teach process hasbeen done. Refer toSunroof Motor/Actuator Initialization/Teach Process.Verify the sunroof for proper operation.Install the headliner. Refer toHeadlining Trim Panel Replacement.

Sunroof Drain Inspection and Cleaning Moonroof/Sunroof
Drain Hose RoutingNote:If the headliner is wet DO NOT remove any interior trim. Dothe Plugged Drain Hose test first.A drain trough encircles the sunroof window panel and wateris drained off by the dra ...

Sunroof Motor/Actuator Initialization/Teach Process Moonroof/Sunroof Power Moonroof Motor and Cables
Note:If the sunroof motor is new, cycle the sunroofseven-(7) times to teach the motor/actuatorinitialization process.Perform the initialization/teach process on a new orreinstalled motor as follows:En ...
