Sunroof Housing Rear Drain Hose Replacement Roof Drainage

Sunroof Housing Rear Drain Hose Replacement

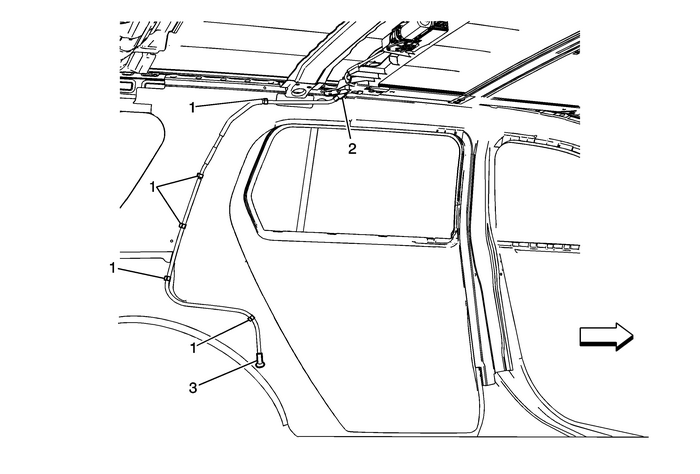

Callout

Component Name

Preliminary ProceduresRemove the quarter window trim finish panel. Refer toQuarter Window Trim Finish Panel Replacement.Remove the body side trim panel. Refer toBody Side Trim Panel Replacement - Left Side

orBody Side Trim Panel Replacement - Right Side.

It is only necessary to lower the headliner. Only do thosesteps in headliner replacement that will lower the headliner enoughto gain access to the part. Refer toHeadlining Trim Panel Replacement.

1

Sunroof Housing Rear Drain Hose Retainers(Qty:-5)

2

Sunroof Housing Rear Drain Hose to Frame

Procedures

Remove the sunroof housing rear hose tie strap to release thehose from the frame spout.

3

Sunroof Housing Rear Drain Hose and Grommet

ProceduresReplace the sunroof housing rear drain hose retainers to thequarter panel if damaged when removing.Secure the sunroof housing rear drain hose to the frame spoutwith a new tie strap.Ensure that the sunroof housing rear drain hose grommet isfully seated into the lower quarter panel to prevent water leaks,do the following:Pour a cup of water in the sunroof housing rear framespout.Ensure that the frame spout to hose and hose to the lowerquarter panel and grommet is not leaking in the vehicle.Ensure that the water is draining out of the lower quarterpanel of the vehicle before installing the headliner, quarterwindow trim finish panel and body side trim panel.
