If equipped, the sunroof only operates when the ignition is on or in ACC/ACCESSORY, or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP).

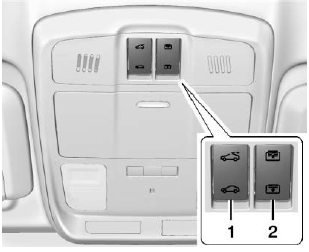

Sunroof Switch
Express-Open/Express-Close : To express-open the sunroof, fully press and release(1). Press the switch again to stop it. To express-close the sunroof, fully press and release(1). Press the switch again to stop it.
Open/Close (Manual Mode) : To open the sunroof, press and hold (1) until the sunroof reaches the desired position. Press and hold (1) to close it.
Comfort Stop : The sunroof has a comfort stop feature that stops the sunroof from opening fully. Press and release the rear ofto open the sunroof to the comfort open position. Pressing the rear of again will open the sunroof fully.
If the sunshade is not fully open when the comfort stop feature is pressed the second time, the sunshade will open fully.
Vent : From the closed position, press(1) to vent the sunroof.
Sunshade Switch
Express-open/Express-close : To express-open the sunshade, fully press and release(2). To express-close the sunshade, fully press and release(2) . Press the switch again to stop it.
Open/Close : To open the sunshade, press and hold(2) until the sunshade reaches the desired position.
When the sunroof is opened, an air deflector will automatically raise.
The air deflector will retract when the sunroof is closed.
