Steering Wheel Adjustment Steering Wheel and Column

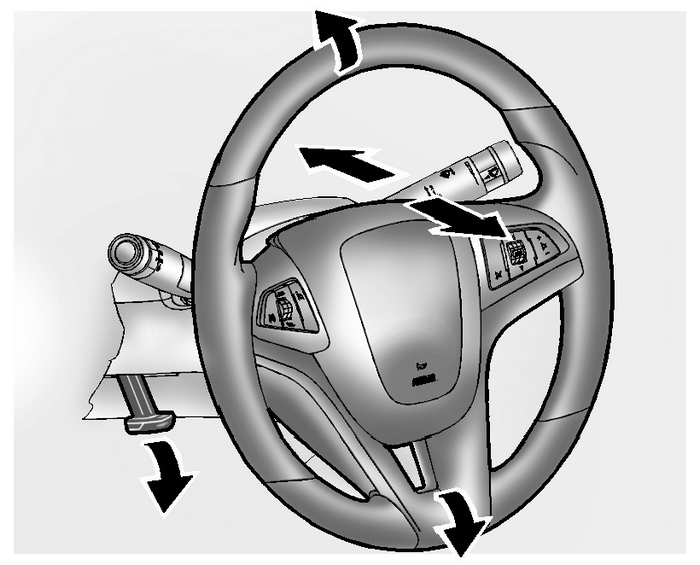

To adjust the steering wheel:

Pull the lever down.Move the steering wheel up or down.Pull or push the steering wheel closer or away from you.Pull the lever up to lock the steering wheel in place.

Do not adjust the steering wheel while driving.
