Chevrolet Equinox Service Manual: Special Tools Hydraulic Steering

Chevrolet Equinox Service Manual / Chassis / Steering / Special Tools Hydraulic Steering

Illustration

Tool Number/ Description

Special Tools Hydraulic Steering

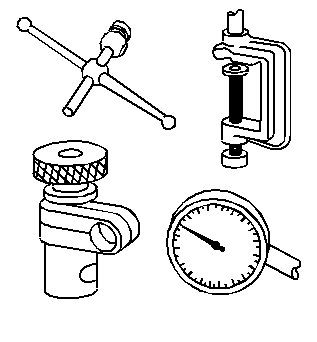

J-8001

Dial Indicator Set

Special Tools Hydraulic Steering

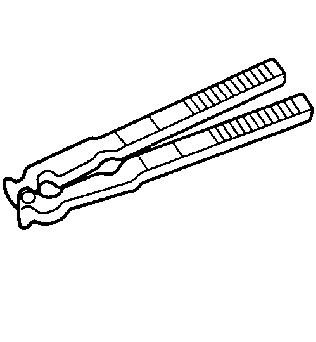

J-22610

Keystone Clamp Pliers

Special Tools Hydraulic Steering

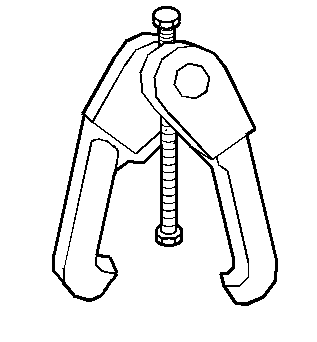

J-24319-B

Steering Linkage and Tie Rod Puller

Special Tools Hydraulic Steering

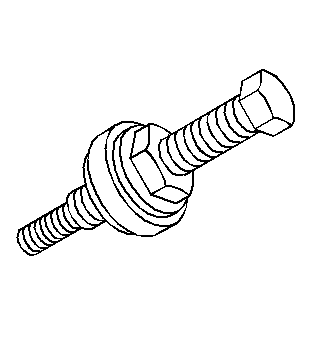

J-25033-C

Pulley Installer

Special Tools Hydraulic Steering

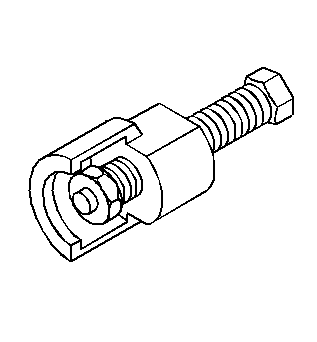

J-25034-C

Pulley Remover

Special Tools Hydraulic Steering

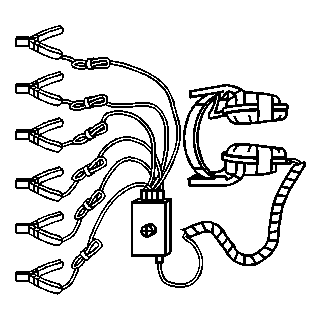

J-39570

Chassis Ear

Special Tools Hydraulic Steering

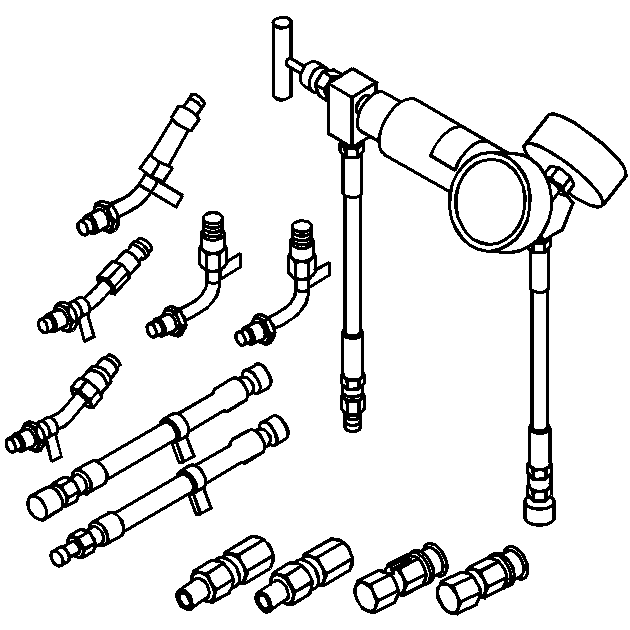

J-44721

Power Steering Analyzer
