Chevrolet Equinox Service Manual: Special Tools Axles Rear

Chevrolet Equinox Service Manual / Powertrain / Driveline / Special Tools Axles Rear

Illustration

Tool Number/Description

Special Tools Axles Rear

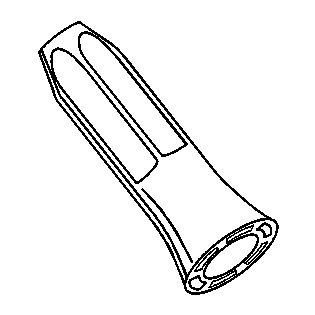

J-44636-1

Pinion Seal Installer

Special Tools Axles Rear

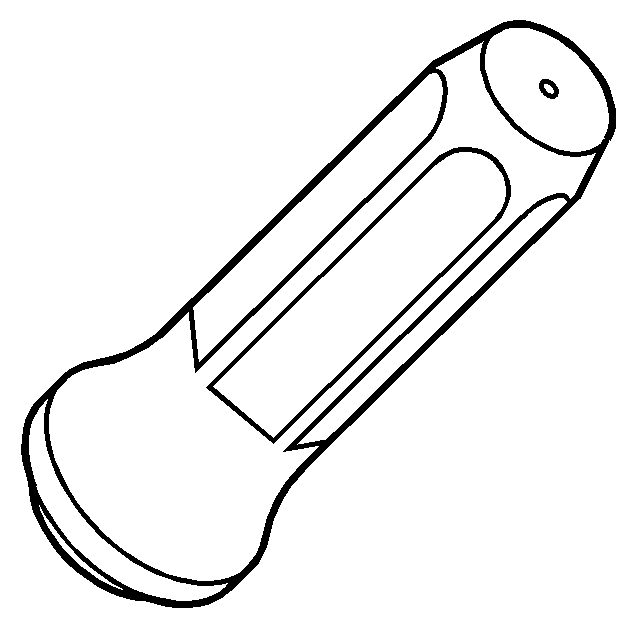

J-44809

J-33832

M-740463

Seal Installer

Special Tools Axles Rear

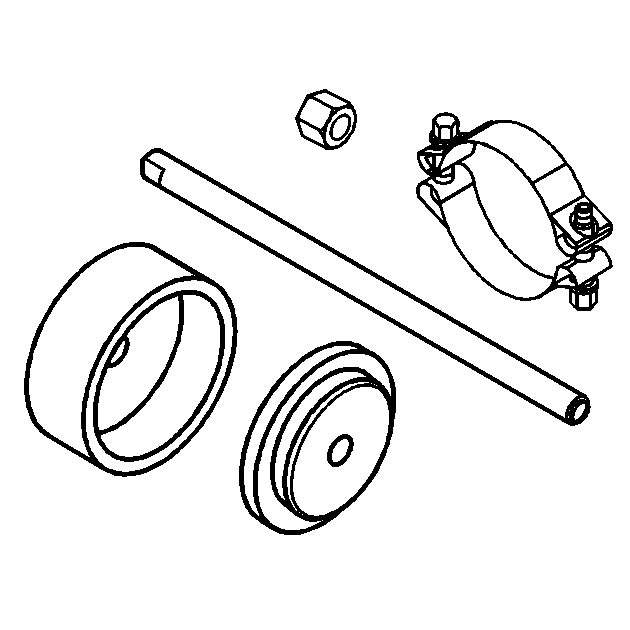

J-45725-A

Frame Bushing Installer
