Secondary Air Injection Check Valve Removal - Bank 1 Emissions Air Injection

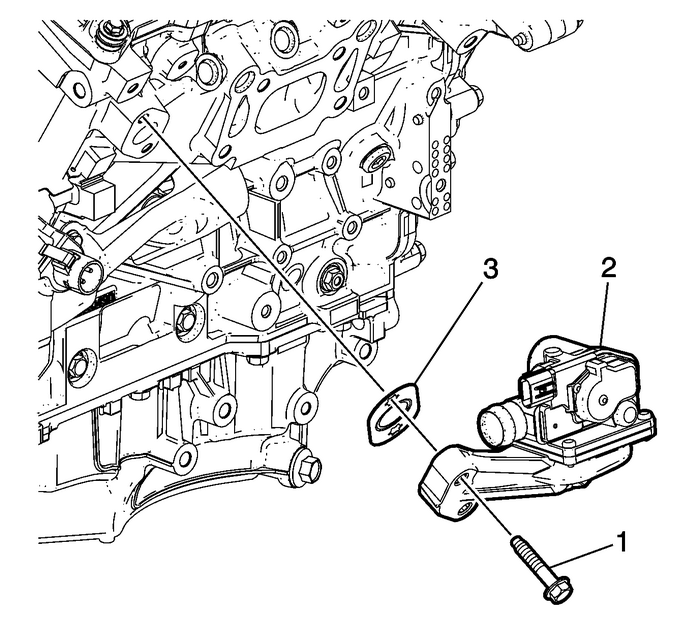

Remove the secondary air injection-(SAI) checkvalve bolts-(1).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(3).

Secondary Timing Chain Tensioner Removal - Right Side Valvetrain Valvetrain Timing Timing Belt Tensioner

Remove the right secondary camshaft drive chain tensionerbolts.Remove the right secondary camshaft drive chaintensioner.Remove and discard the right secondary camshaft drive chaintensioner gasket.Insp ...

Secondary Air Injection Check Valve Removal - Bank 2 Emissions Air Injection

Remove the secondary air injection-(SAI) checkvalve bolts-(3).Remove the SAI check valve-(2).Remove and discard the SAI check valvegasket-(1). ...
