Roof Rail Front Assist Handle Replacement Grab Handles

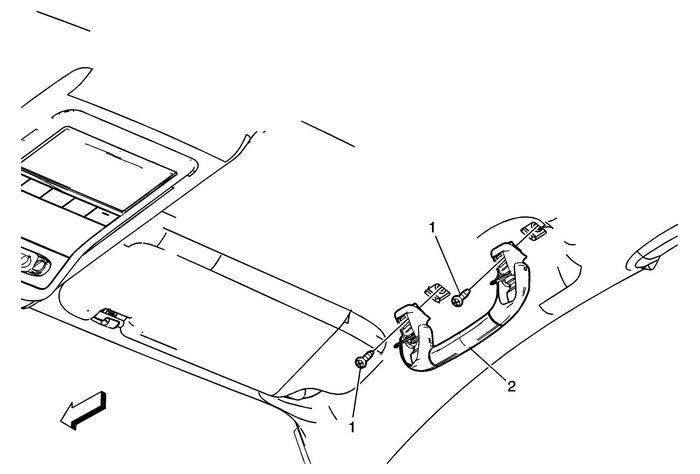

Roof Rail Front Assist Handle Replacement

Callout

Component Name

1

Roof Rail Front Assist Handle Fastener(Qty:-2)

Caution:Refer toFastener Caution.

ProcedureFold the assist handle downward and hold.Use a small flat-bladed tool to open the assist handle coversto access the screws.Tighten

6-Y-(53-lb-in)

2

Roof Rail Front Assist Handle
