Rear Side Door Window Regulator Replacement Doors

Rear Side Door Window Regulator Replacement

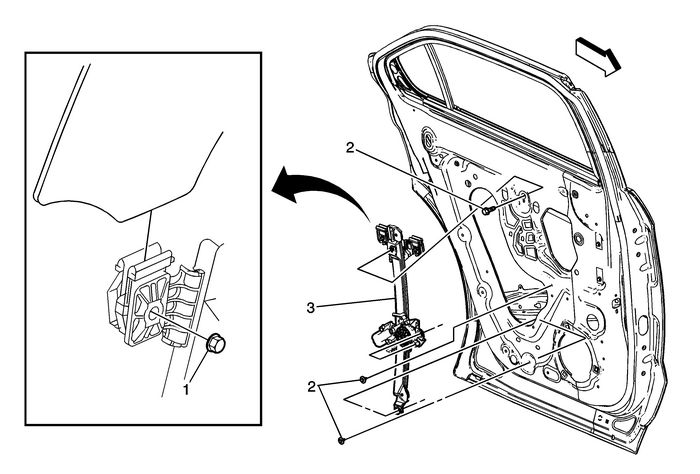

Callout

Component Name

Preliminary ProceduresPlace the window in the fully down position.Remove rear door trim panel. Refer toRear Side Door Trim Panel Replacement.Remove the rear side door inner sealing strip. Refer toRear Side Door Window Inner Sealing Strip Replacement.

1

Rear Side Door Window Regulator Guide Nut to Window(Qty:-2)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

ProcedureRemove the rear side door water deflector.Position window to access the rear side door window regulatorguide bolts.

Loosen the nuts on the window regulator guide.

Raise the window to the fully up position, tape inplace.Disconnect the electrical connector from the motor.Tighten

11-Y(96-lb-in)

2

Rear Side Door Window Regulator Bolts(Qty:-3)

Tighten

11-Y(97-lb-in)

3

Rear Side Door Window Regulator

ProcedureWhen installing a new window regulator, transfer the twowindow regulator guides nuts.After the window regulator has been installed and connectedremove the tape from the window and lower the window to meet theregulator guides nuts.Inspect the door window for proper operation beforeinstalling the door trim panel.
