Rear Side Door Check Link Replacement Panels

Rear Side Door Check Link Replacement

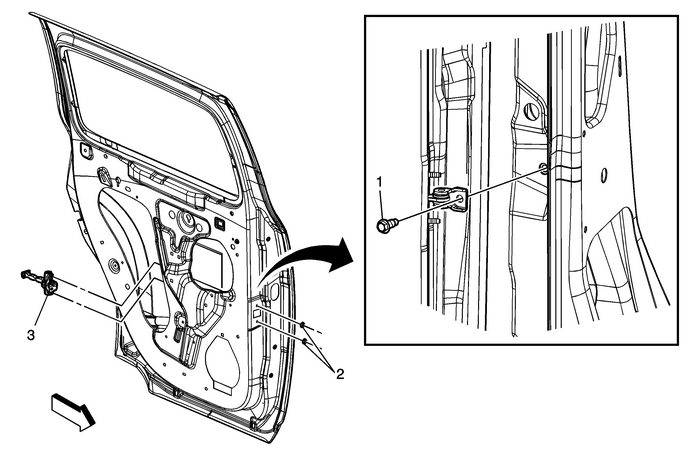

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim panel. Refer toRear Side Door Trim Panel Replacement.

1

Rear Side Door Check Link Bolt

Caution:Refer toFastener Caution.

ProcedureMove the window to the full up position.Remove the rear door water deflector.Tighten

25-Y(18-lb-ft)

2

Rear Side Door Check Link Nut (Qty:-2)

Tighten

10-Y(89-lb-in)

3

Rear Side Door Check Link Assembly

Tip:Remove the check link through the inside of the door.
