Rear Seat Removal and Installation Seats Rear

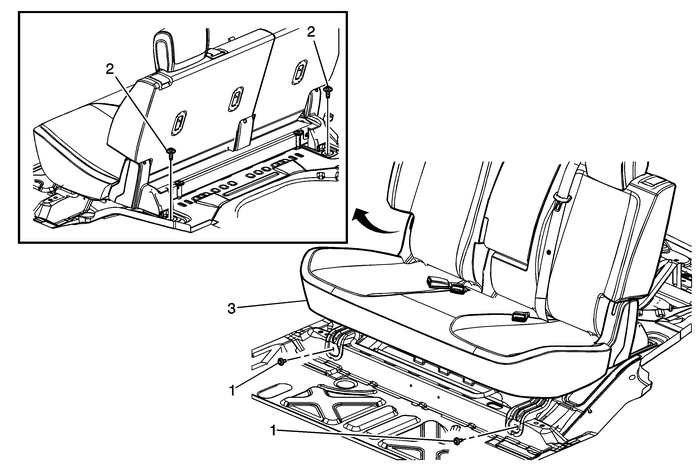

Rear Seat Removal and Installation

Callout

Component Name

Preliminary ProceduresRemove the rear seat floor filler trim panel. Refer toRear Seat Floor Filler Trim Panel ReplacementRemove the rear seat riser finish cover. Refer toRear Seat Riser Finish Cover Replacement

1

Rear Seat Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

25-Y(18-lb-ft)

2

Rear Seat Bolt (Qty:-2)

Tighten

45-Y(33-lb-ft)

3

Rear Seat Assembly

Procedure

With the aid of an assistant, remove the rear seat from thevehicle.
