Rear Seat Head Restraint Replacement Seats

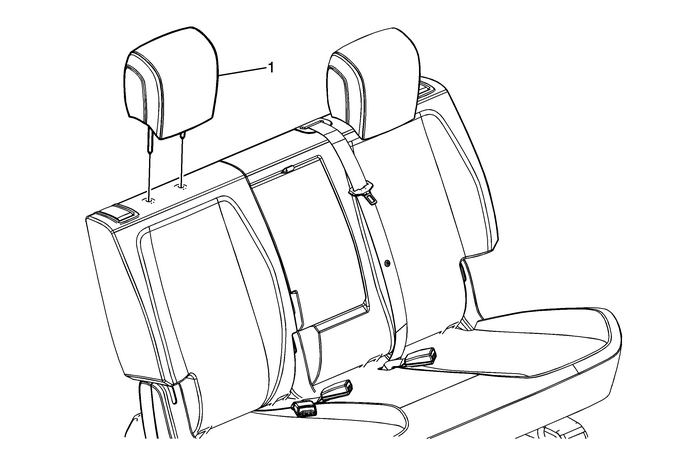

Rear Seat Head Restraint Replacement

Callout

Component Name

1	Rear Seat Head Restraint Procedure Insert a small diameter tools into the holes on both of therestraint guides and pull upward to remove.

Rear Seat Head Restraint Guide Replacement Seats

Rear Seat Head Restraint Guide ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear seat head restraint. Refer toRear Seat Head Restraint Replacement.Remove the rear seat back cushion ...

Rear Seat Outer Recliner Rear Finish Cover Replacement Seats Rear

Rear Seat Outer Recliner Rear Finish Cover ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover Replacem ...
