Rear Seat Head Restraint Guide Replacement Seats

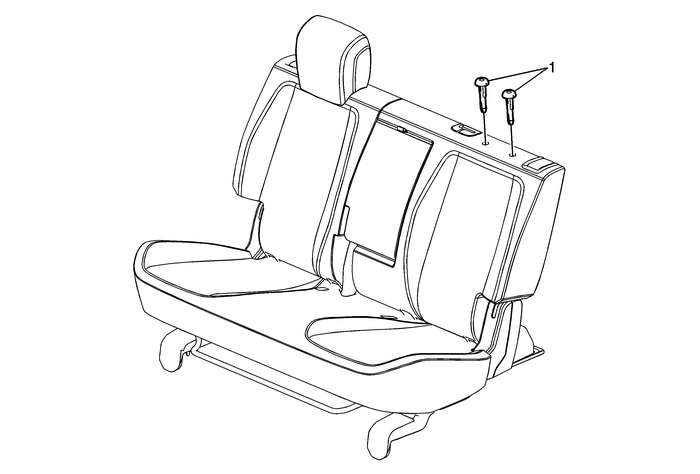

Rear Seat Head Restraint Guide Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat head restraint. Refer toRear Seat Head Restraint Replacement.Remove the rear seat back cushion cover and pad. Refer toRear Seat Back Cushion Cover and Pad Replacement.Remove the rear seat back cushion finish panel. Refer toRear Seat Back Cushion Panel Replacement.

1

Front Seat Head Restraint Guides

Tip:Squeeze the bottom of the guides together and push upward toremove.

Rear Seat Floor Filler Trim Panel Replacement Seats Rear
Rear Seat Floor Filler Trim Panel ReplacementCalloutComponent Name1Rear Seat Floor Filler Trim PanelProcedureMake sure that the rear seat back is in the upposition.Lift the filler trim panel up to gai ...

Rear Seat Head Restraint Replacement Seats
Rear Seat Head Restraint ReplacementCalloutComponent Name1Rear Seat Head RestraintProcedureInsert a small diameter tools into the holes on both of therestraint guides and pull upward to remove. ...
