Rear Bumper Fascia Molding Replacement (Terrain) Bumpers Rear Bumper

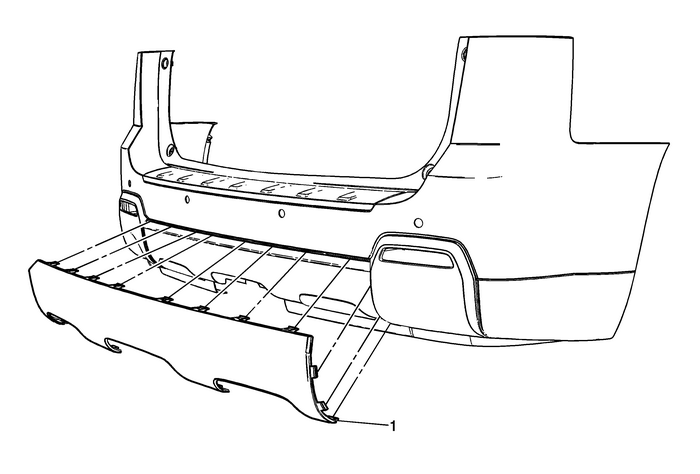

Rear Bumper Fascia Molding Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear bumper energy absorber. Refer toRear Bumper Energy Absorber Replacement.

1

Rear Bumper Fascia Molding

ProcedureRemove the 10-metal retainers.Disengage the integral retainers, top row.
Rear Bumper Fascia Molding Replacement Bumpers Rear Bumper
Rear Bumper Fascia Molding ReplacementCalloutComponent NamePreliminary ProcedureRemove the rear bumper energy absorber. Refer toRear Bumper Energy Absorber Replacement.1Rear Bumper Fascia MoldingProce ...

Rear Bumper Fascia Replacement Bumpers Rear Bumper
Rear Bumper Fascia ReplacementCalloutComponent NamePreliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.1Rear Fascia Lower ScrewCaution:Refer toFastener Caution. ...
