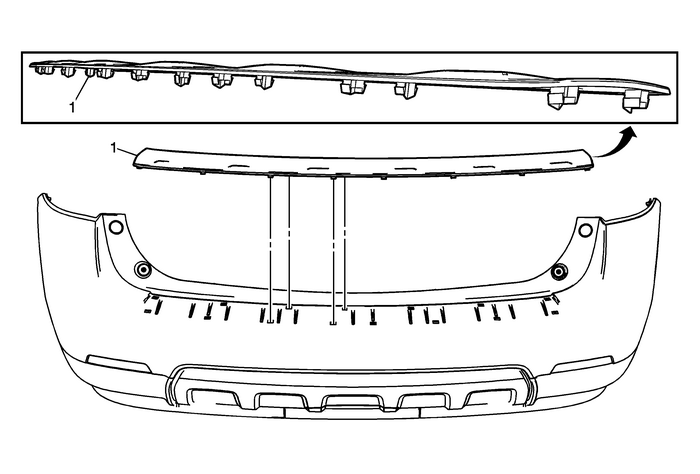

Rear Bumper Fascia Bumper Guard Pad Replacement

Callout

Component Name

Procedure

Remove the rear bumper energy absorber. Refer toRear Bumper Energy Absorber Replacement.

Rear Bumper Fascia Bumper Guard Pad

Procedure

Carefully push a small thin nylon wedge between the fasciaand the fascia bumper guard. Insert a small flat-bladed tool intothe fascia slot and depress the snaps one at a time and pull on thefascia step pad at the same time to gradually remove the fasciabumper guard from the fascia.
