Rear Bumper Fascia Bracket Replacement - Side Bumpers Rear Bumper

Rear Bumper Fascia Bracket Replacement - Side

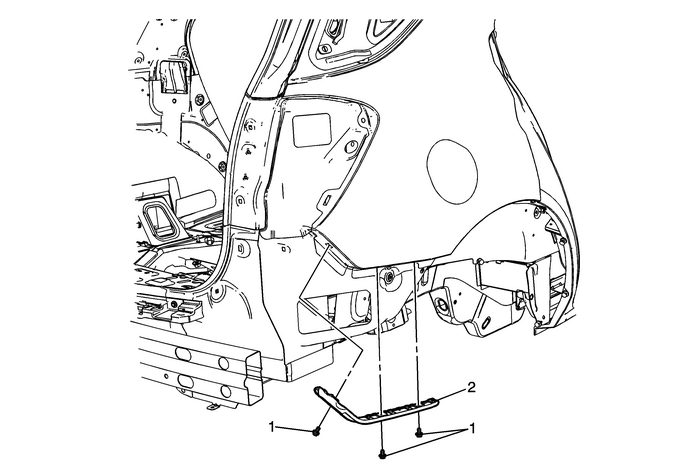

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Fascia Bracket Side Bolt(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Rear Bumper Fascia Bracket Side
