Chevrolet Equinox Service Manual: Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Special ToolsEN-45027Tensioner ToolEN-46112Tensioner Retraction PinsEN-48383Camshaft Retaining ToolsEN-48589Crankshaft Rotation Socket

For equivalent regional tools, refer toSpecial Tools.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

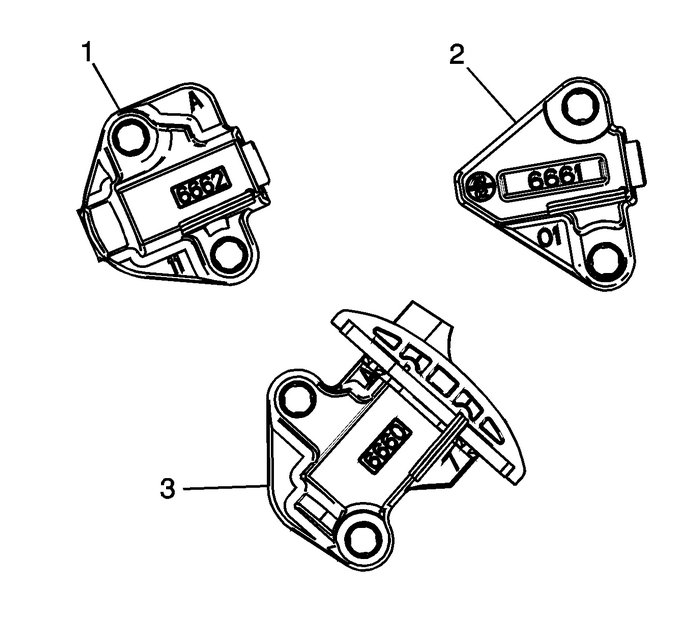

Ensure that the primary camshaft drive chaintensioner-(3) is being installed.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

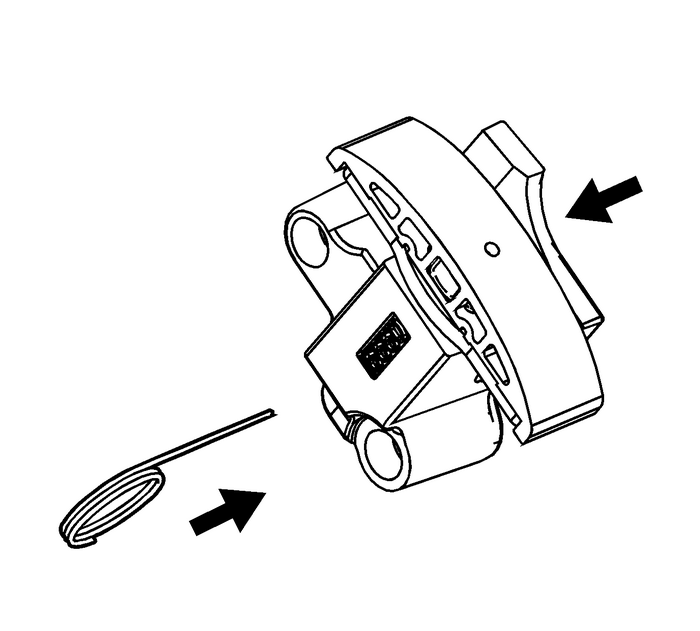

Using theEN-45027tool, reset the primary camshaft drive chain tensionerplunger.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

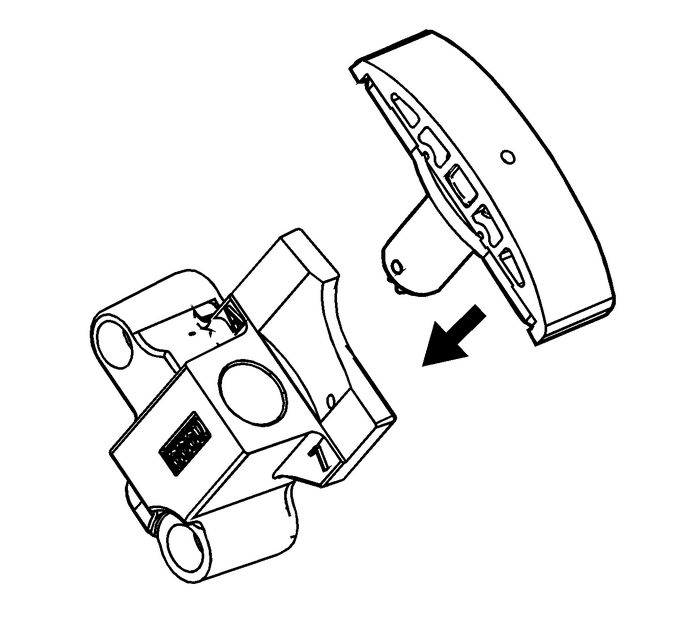

Install the plunger into the primary camshaft drive chaintensioner body.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

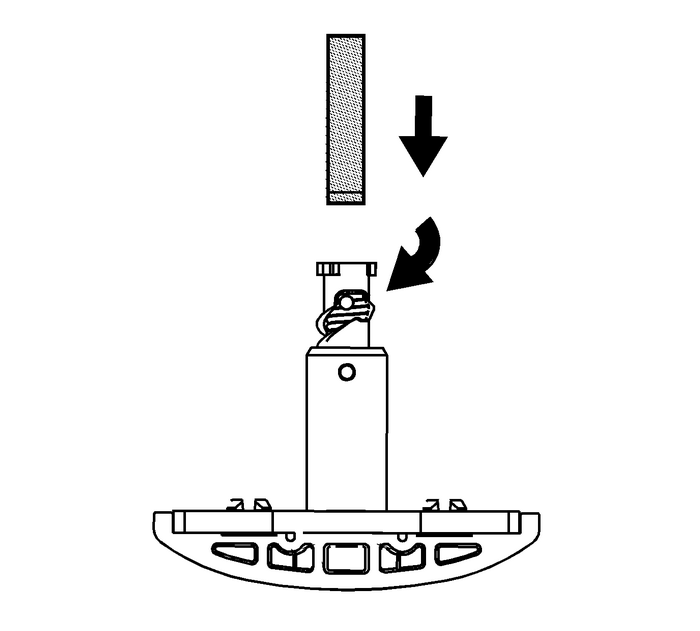

Compress the plunger into the body and lock the primarycamshaft drive chain tensioner by inserting theEN-46112pinsinto the access hole in the side of the primary camshaftdrive chain tensioner body.Slowly release pressure on the primary camshaft drive chaintensioner. The primary camshaft drive chain tensioner should remaincompressed.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

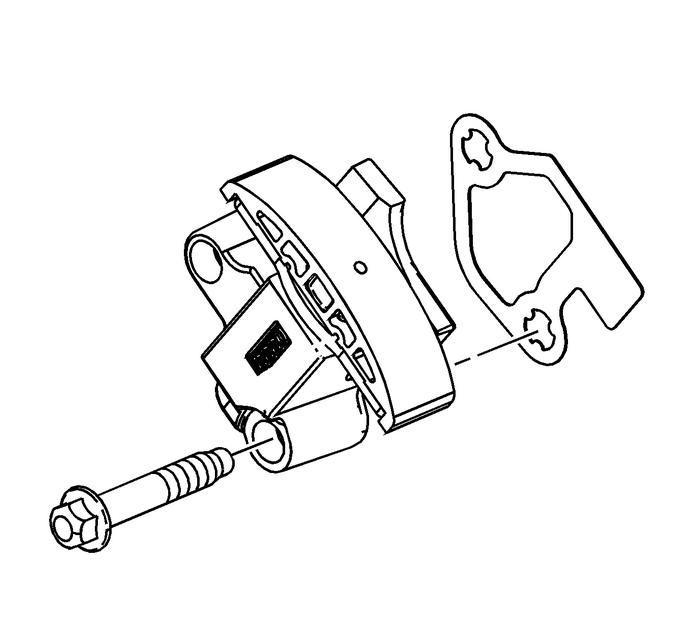

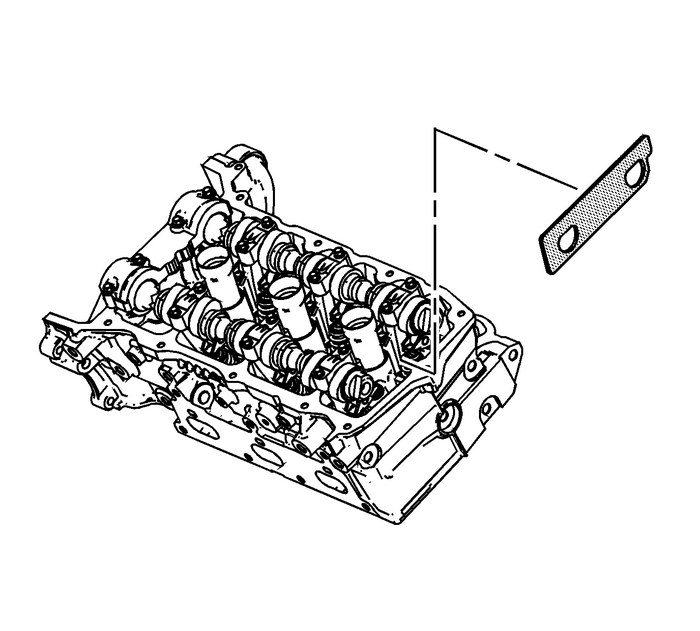

Install a NEW primary camshaft drive chain tensioner gasketto the primary camshaft drive chain tensioner.Install the primary camshaft drive chain tensioner boltsthrough the primary camshaft drive chain tensioner andgasket.Ensure the primary camshaft drive chain tensioner mountingsurface on the engine block does not have any burrs or defects thatwould degrade the sealing of the NEW primary camshaft drive chaintensioner gasket.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

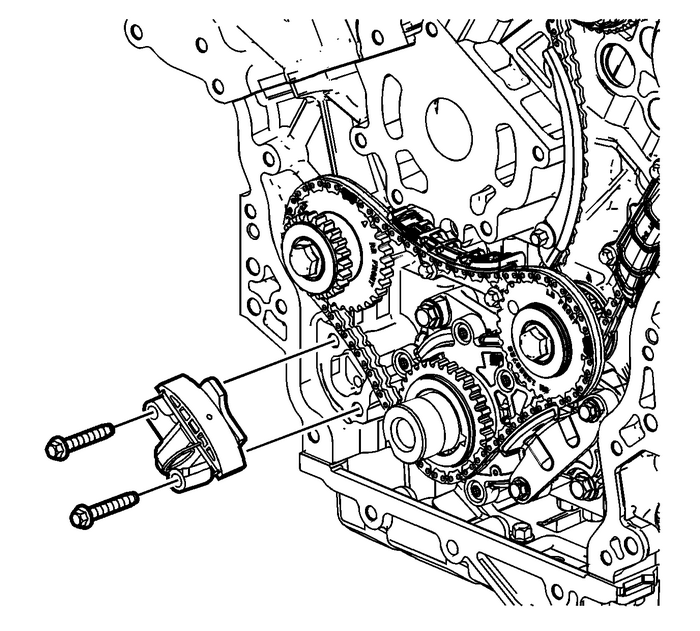

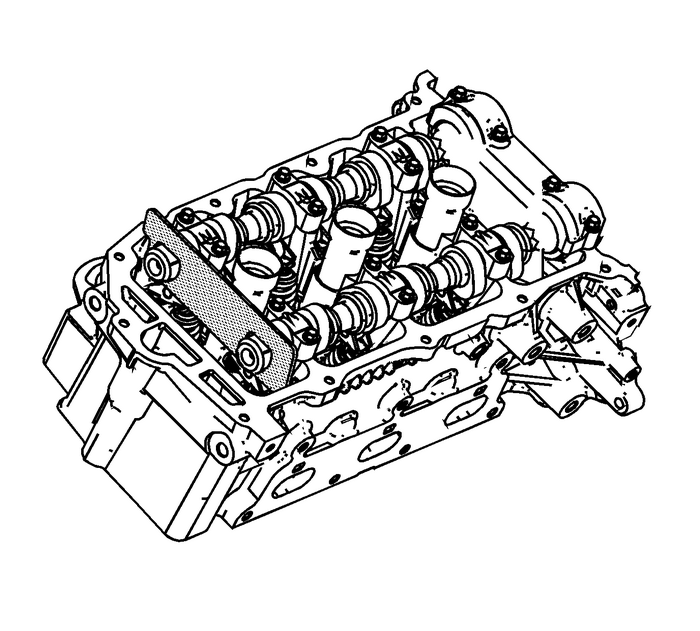

Place the primary camshaft drive chain tensioner intoposition and loosely install the bolts to the block.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Caution:Refer toFastener Caution.

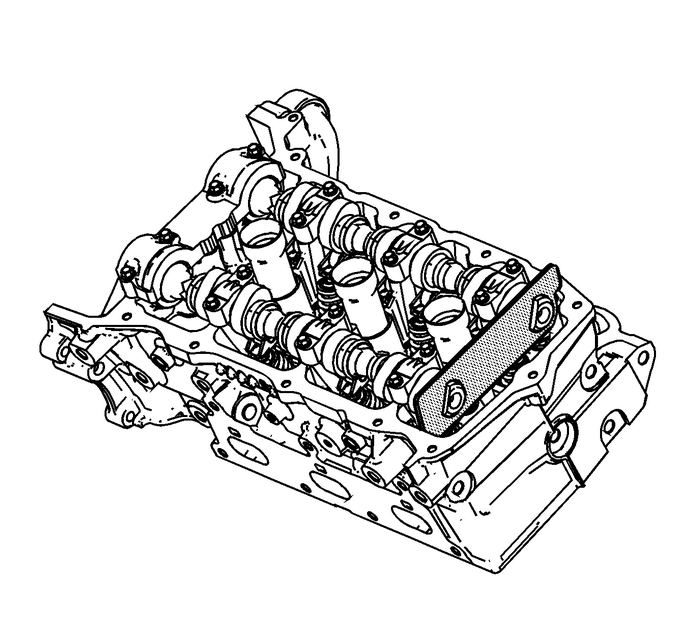

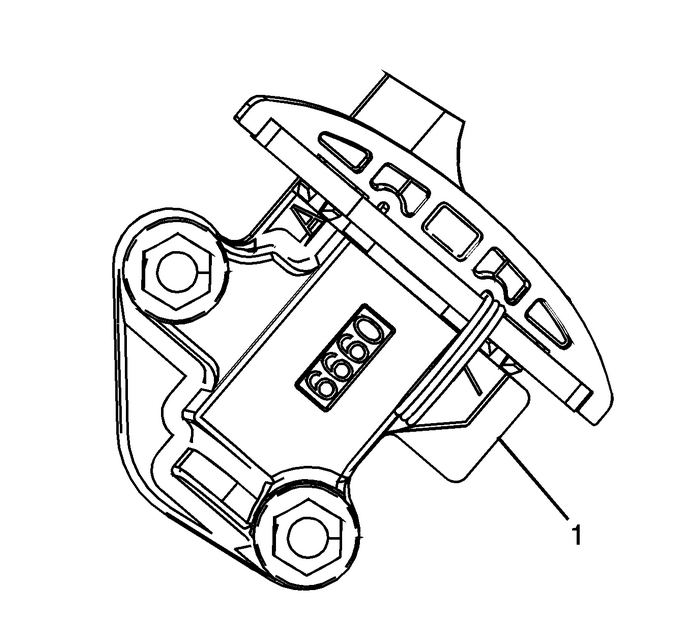

Verify the proper placement of the primary camshaft drivechain tensioner gasket tab-(1).First Pass

Tighten the primary camshaft drive chain tensioner bolts to5-Y(44-lb-in).

Final Pass

Tighten the primary camshaft drive chain tensioner bolts to25-Y(18-lb-ft).

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

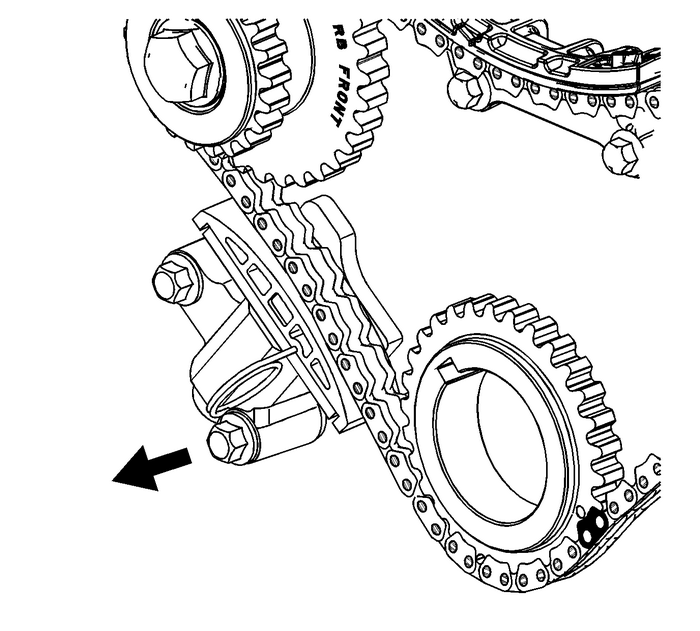

Release the primary camshaft drive chain tensioner by pullingout theEN-46112pinsand unlocking the tensioner plunger.Verify the primary and left secondary camshaft drive chaintiming mark alignments. Refer toTiming Chain Alignment Diagram– StageOne.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Remove the EN-48383-1 from the rear ofthe left camshafts.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

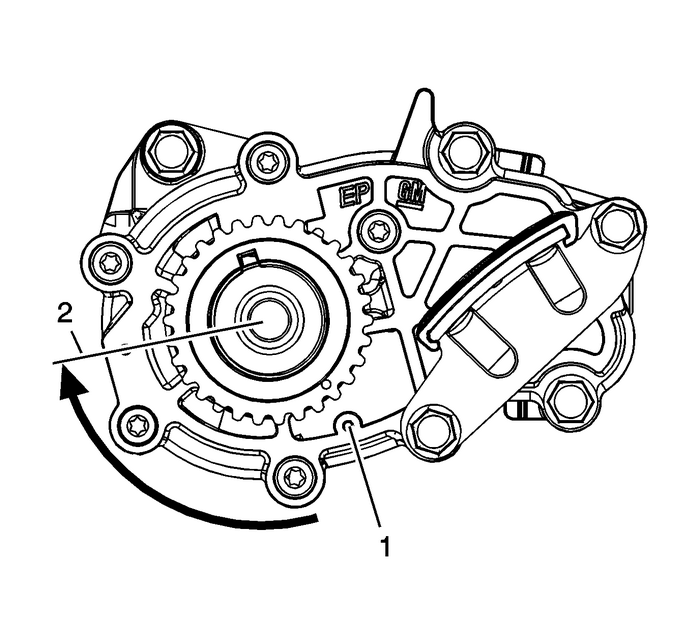

Using theEN-48589socket, rotate the crankshaft and crankshaft sprocket from thestage-1 alignment position-(1) to thestage-2 alignment position-(2),115-crankshaft degrees, in order to install the rightsecondary camshaft drive chain components.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Install the EN-48383-2 onto the rear ofthe left camshafts.

Primary Camshaft Intermediate Drive Chain Tensioner Installation Valvetrain Camshaft

Install the EN-48383-3 onto the rear ofthe right camshafts.
