Power Steering Fluid Reservoir Outlet Hose Replacement Hydraulic Steering Steering Fluid Reservoir

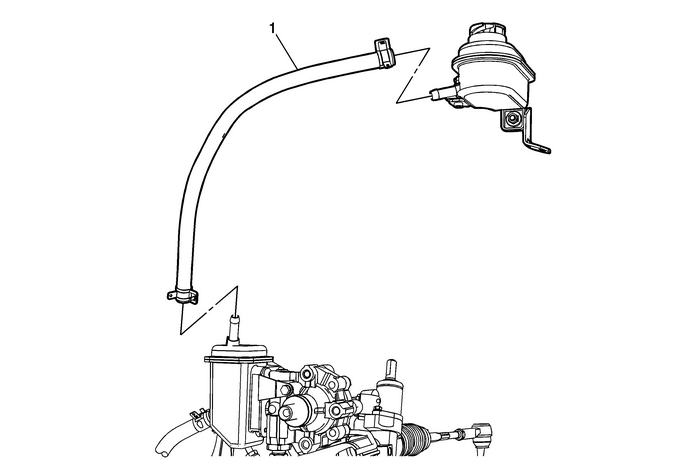

Power Steering Fluid Reservoir Outlet Hose Replacement

Callout

Component Name

Preliminary ProceduresPlace drain pans under the vehicle.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove as much power steering fluid from the upper powersteering fluid reservoir as possible.Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.Remove the air cleaner assembly. Refer toAir Cleaner Assembly Replacement.Remove the right front tire and wheel assembly. Refer toTire and Wheel Removal and Installation.

1

Power Steering Fluid Reservoir Outlet Hose

ProcedureFill and bleed the power steering system. Refer toPower Steering System Bleeding.Clean any excess power steering fluid from thevehicle.
