Chevrolet Equinox Owners Manual: Power Seat Adjustment

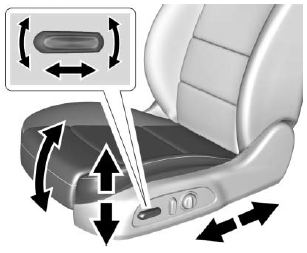

To adjust a power seat, if equipped:
- Move the seat forward or rearward by sliding the control forward or rearward.
- Raise or lower the front part of the seat cushion by moving the front of the control up or down.
- Raise or lower the entire seat by moving the rear of the control up or down.
To adjust the seatback, see Reclining Seatbacks.
Seat Adjustment
Warning
You can lose control of the
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.
...
Lumbar Adjustment
If equipped, press and hold the front
or rear of the control to increase or
decrease lumbar support. ...
