Piston Oil Nozzle Replacement

Piston Oil Nozzle Replacement

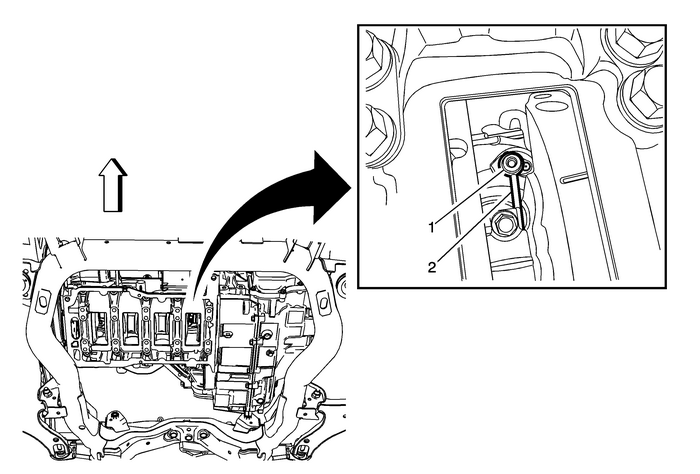

Callout

Component Name

Preliminary Procedure

Remove the oil pan. Refer toOil Pan Replacement.

1

Piston Oil Nozzle Fastener

Caution:Refer toFastener Caution.

Procedure

Rotate the crankshaft as necessary to gain access to pistonoil nozzles bolts.

Tighten

15-Y(11-lb-ft)

2

Piston Oil Nozzle

Procedure

Transfer part as necessary.
