Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the control valve lower body and upper body. Refer toControl Valve Lower Body and Upper Body Replacement. | |

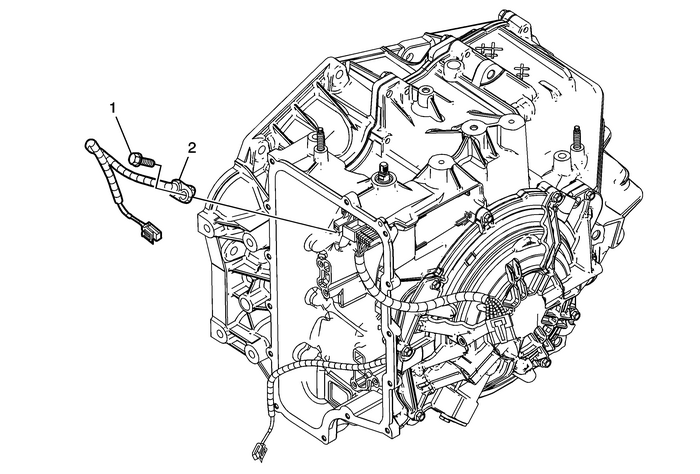

1 | Output Speed Sensor Bolt M6 x 25 Caution:Refer toFastener Caution. Tighten12-Y (106-lb-in) |
2 | Output Speed Sensor Procedure Perform the service programming system procedure. Refer toService Programming System (SPS). Note:After an internal transmission repair or internal part replacement the service programmingsystem procedure should be performed. |
Control Valve Upper Body Spacer Plate Assembly Automatic Transmission Unit
Control Valve Upper Body Spacer Plate Assembly(2)Line(3)Decrease(4)Converter Feed(5)TCC Release(7)Cooler Feed(8)Lube(9)Regulated Apply(10)Compensator Feed(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solenoid 1(16)Solenoid 2(17)CSV2 Enable(18)CSV3 Enable(19)R1/456 Clutch Feed(20)R1 Fee ...
