Chevrolet Equinox Service Manual: Oil Pump Suction Pipe and Screen Cleaning and Inspection Engine Lubrication Oil Pump

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pump Suction Pipe and Screen Cleaning and Inspection Engine Lubrication Oil Pump

Cleaning ProcedureClean the oil pump pipe and screen with solvent.

Warning:Refer toSafety Glasses Warning.

Dry the oil pump pipe and screen with compressed air.Inspection Procedure

Oil Pump Suction Pipe and Screen Cleaning and Inspection Engine Lubrication Oil Pump

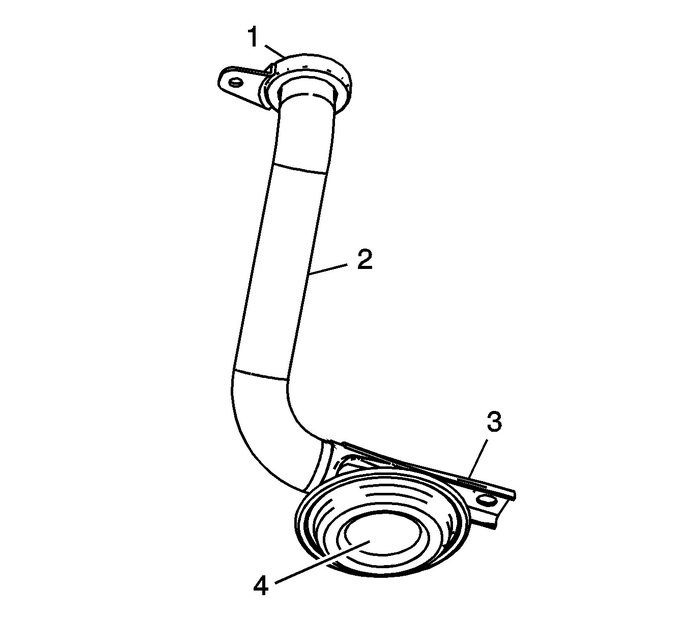

Inspect the mounting surface-(1) for possibleleakage paths.Inspect the oil pump pipe tube-(2) for cracks,imperfections and/or damage.Inspect the oil pump pipe support bracket-(3) forcracks or damage.Inspect the oil pump screen-(4) for blockage,foreign material, tears, cracks and/or damage.
