Oil Filter Adapter Removal Engine Lubrication Oil Filter

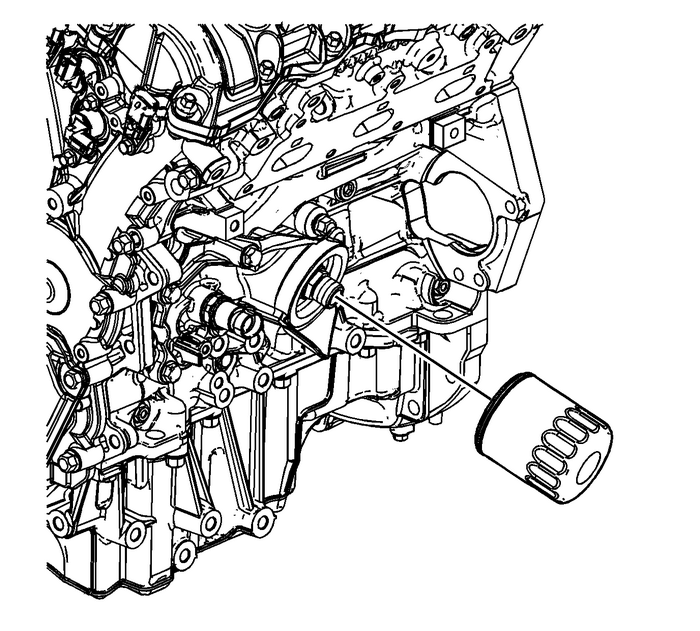

Remove and properly dispose of the oil filter.

Oil Filter Adapter Removal Engine Lubrication Oil Filter

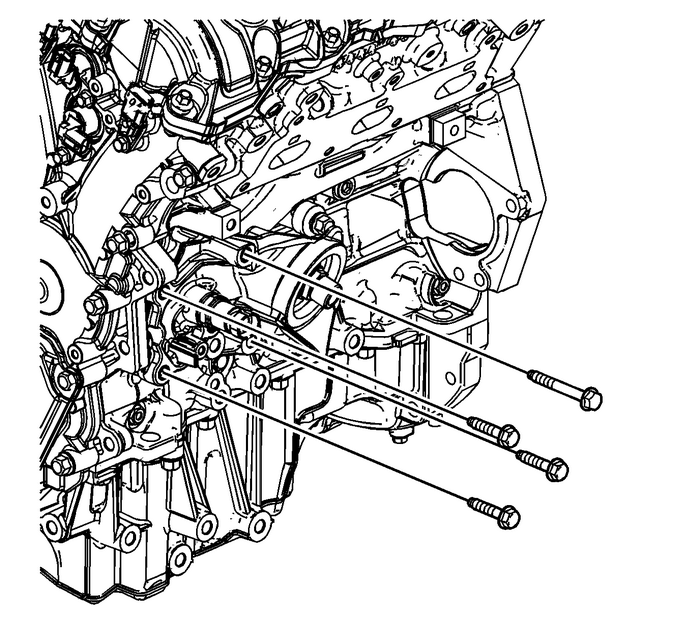

Remove the oil filter adapter bolts from the engineblock.

Oil Filter Adapter Removal Engine Lubrication Oil Filter

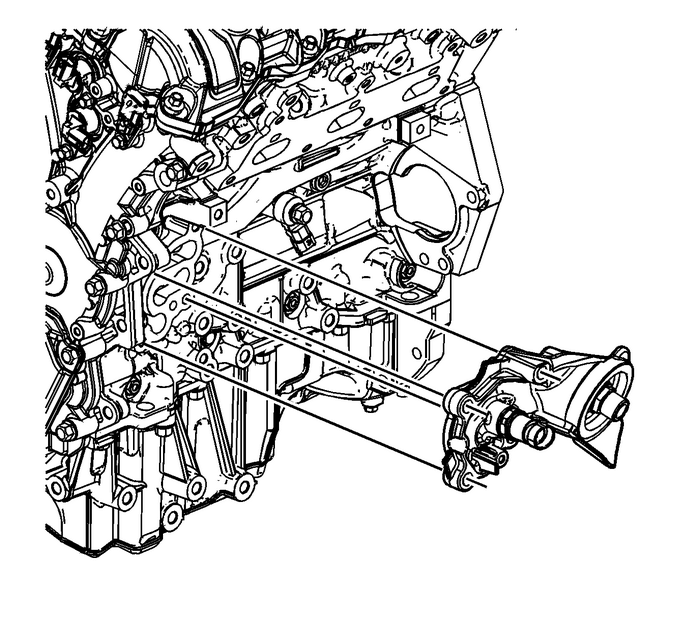

Remove the oil filter adapter.

Oil Filter Adapter Removal Engine Lubrication Oil Filter

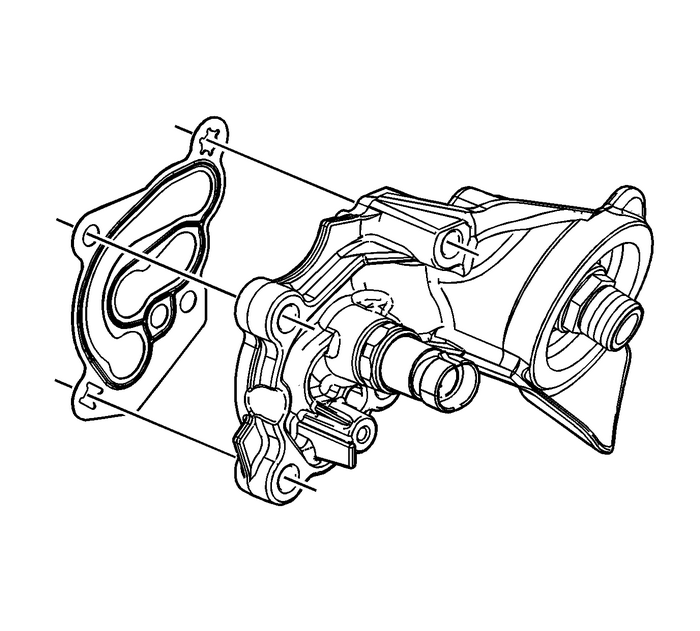

Remove and discard the oil filter adapter gasket.
