Cleaning ProcedureClean the oil filter adapter components withnon-corrosive solvent.
Warning:Refer toSafety Glasses Warning.
Dry the oil filter adapter components with compressedair.Inspection ProcedureNote:The internal parts of the oil filter adapter housing are notserviced separately. If wear or damage is noted, replace the entireoil filter adapter assembly.

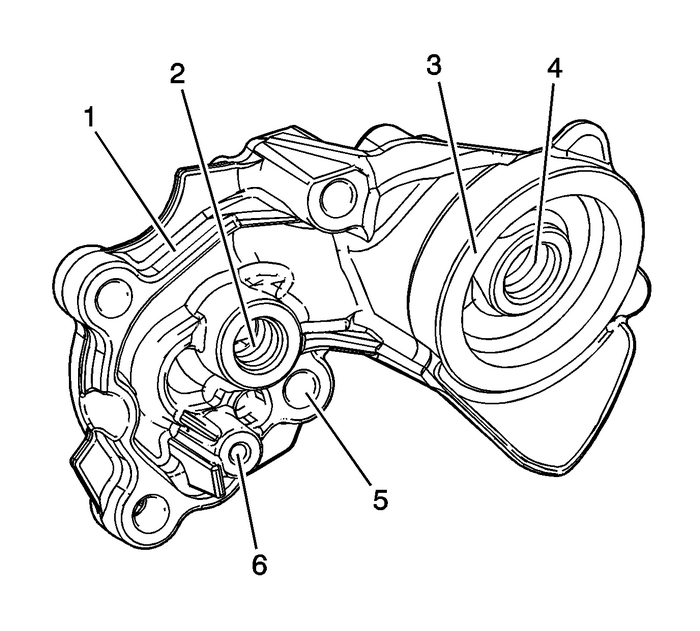

Inspect the oil filter adapter housing for cracks, castingimperfections or damage-(1).Inspect the threads for the oil pressuresender-(2) or the bracket-(6) fordamage.Inspect the oil filter sealing surface-(3) fordamage.Inspect the threads for the oil filter fitting-(4)for damage.Inspect the mounting holes-(5) for damage.Inspect the oil filter adapter housing gasket sealingsurface-(1) for damage.Inspect the oil filter adapter housingpassages-(2) for damage or blockage.Repair or replace the oil filter adapter housing asnecessary.
Engine Front Cover Installation Engine Block Cylinder Block Cyl Block Front Cover
Special Tools EN–46109 Guide PinsFor equivalent regional tools, refer toSpecial Tools.Install the 8-mm (0.315-in) guide from the EN–46109 pins into the cylinder block positions as shown.Install the NEW engine front cover to cylinder block seal.Note:No RTV sealant should be visible in the M12 bol ...
