Oil Filter Adapter Assemble Engine Lubrication Oil Filter

Caution:Refer toFastener Caution.

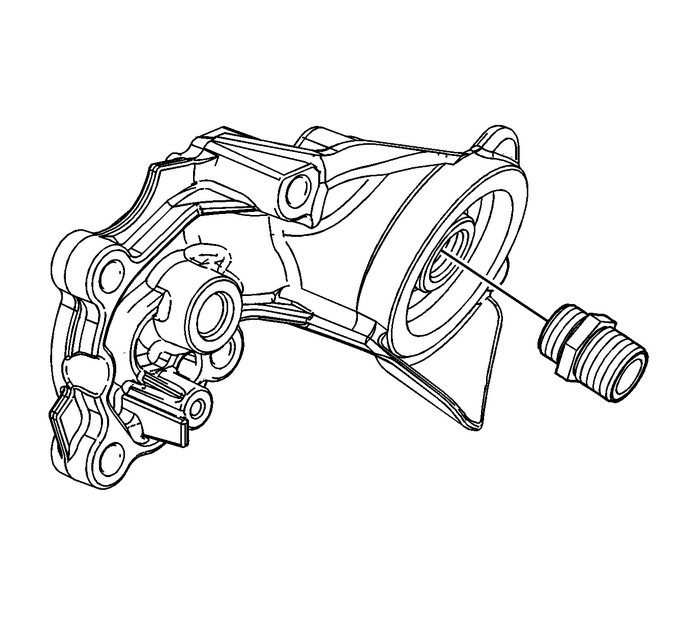

Install the oil filter fitting and tighten to50-Y(37-lb-ft).

Oil Filter Adapter Assemble Engine Lubrication Oil Filter

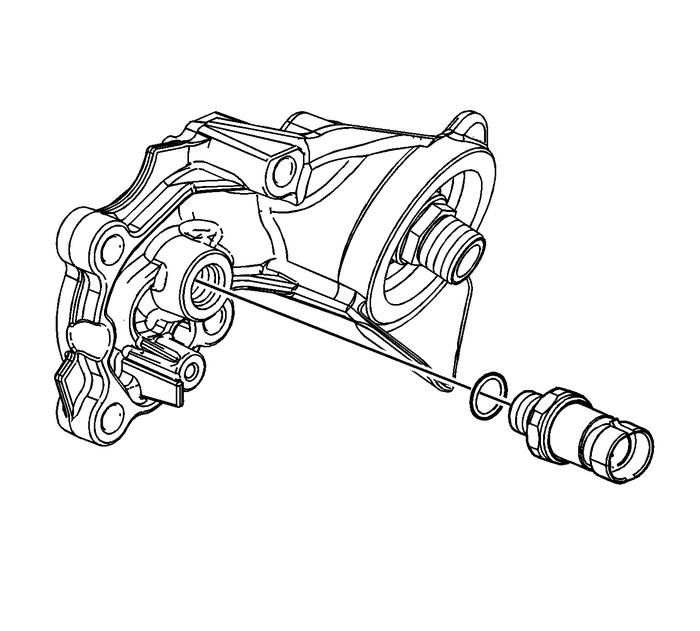

Install the oil pressure sender and tighten to20-Y(15-lb-ft).
